AFM/STM cross section specimen mounts, cylinder

The cross section AFM mounts and AFM sample holders offer a convenient way to clamp and position cross sectional samples for AFM imaging. The holders are all made from high quality magnetic stainless steel (alloy 430), so they can be easily attached to the magnetic sample holder of the AFM system. The small 12mm diameter, 4.5mm height and 3.5mm feature depth will make the cross section holders compatible with most AFM systems on the market.Specifications:MountDescriptionGA550-A90° AFM sample mount, use (conductive) adhesive to mount specimenGA550-B90° AFM sample mount with spring clip to conveniently mount thin cross section sampleGA550-C

The cross section AFM mounts and AFM sample holders offer a convenient way to clamp and position cross sectional samples for AFM imaging. The holders are all made from high quality magnetic stainless steel (alloy 430), so they can be easily attached to the magnetic sample holder of the AFM system. The small 12mm diameter, 4.5mm height and 3.5mm feature depth will make the cross section holders compatible with most AFM systems on the market.

Specifications:

Mount Description

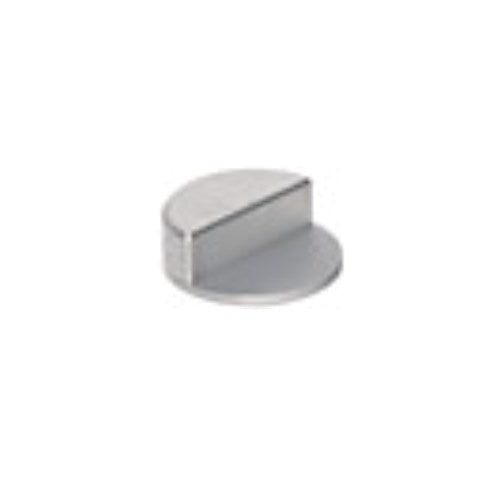

GA550-A
90° AFM sample mount, use (conductive) adhesive to mount specimen

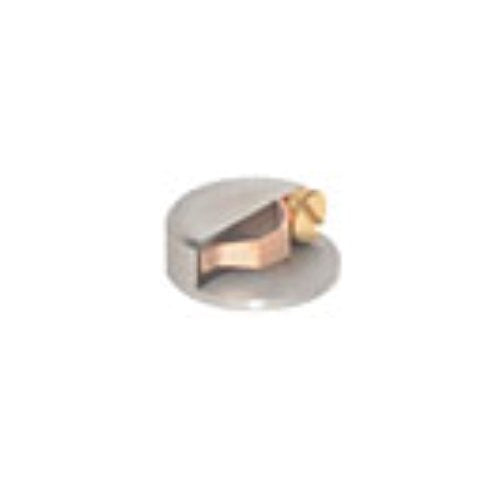

GA550-B
90° AFM sample mount with spring clip to conveniently mount thin cross section sample

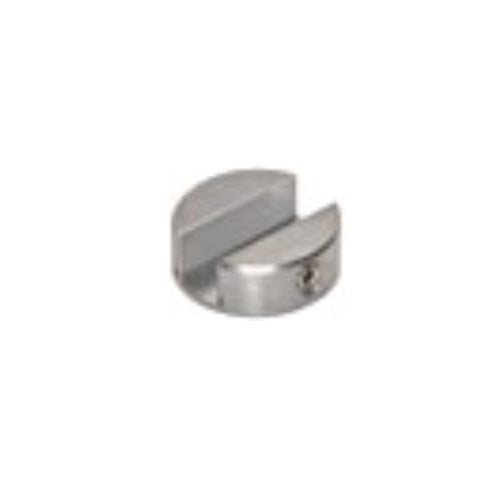

GA550-C
Set screw vice to mount for AFM samples up to 4mm thickness (Hex key for set screw included)
GA550-D
Dual set screw vice for AFM mount samples up to 1mm thickness (Hex key for set screws included)


Code Title Style Pack Size Availability Price Updated: 14-07-2024
GA550-C AFM/STM cross section specimen mounts, cylinder 4mm screw vice Each 1 in stock $109.00 AUD
GA550-D AFM/STM cross section specimen mounts, cylinder 1mm dual screw vice Each 3 weeks $109.00 AUD
GA550-A AFM/STM cross section specimen mounts, cylinder 90 deg. Each 3 weeks $67.00 AUD
GA550-B AFM/STM cross section specimen mounts, cylinder 90 deg., spring clip Each 3 weeks $106.00 AUD
