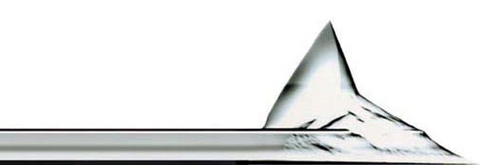

The Contact series silicon AFM probes for contact mode and pulse force mode, made of monolithic silicon fitting most commercial AFM's, compatible with DI Nanoscope, PSI, JEOL, NT-MDT, Asylum, VEECO, WiTec and other commercial AFM's. The AFM cantilever and tip are micromachined with excellent uniformity and a sharp tip radius for high quality imaging. They feature alignment grooves for correct holding and calibration of probes (alignment grooves do not affect the AFM probe in systems that do not require this feature).See images for AFM probes coatings and application information.Technical Data: ContactRotated monolithic silicon probeSymmetric tip shapeAlignment grooves or noneChip size 3.4 x 1.6 x 0.3mm

The Contact series silicon AFM probes for contact mode and pulse force mode, made of monolithic silicon fitting most commercial AFM's, compatible with DI Nanoscope, PSI, JEOL, NT-MDT, Asylum, VEECO, WiTec and other commercial AFM's. The AFM cantilever and tip are micromachined with excellent uniformity and a sharp tip radius for high quality imaging. They feature alignment grooves for correct holding and calibration of probes (alignment grooves do not affect the AFM probe in systems that do not require this feature).

See images for AFM probes coatings and application information.

Technical Data: Contact

  • Rotated monolithic silicon probe
  • Symmetric tip shape
  • Alignment grooves or none
  • Chip size 3.4 x 1.6 x 0.3mm
        Value Range
Resonant Freq. 13kHz ±4kHz
Force Constant  0.2N/m 0.07-0.4N/m
Length 450µm ±10µm
Mean Width               50µm ±5µm
Thickness  2µm
 ±1µm
Tip Height 17µm
 ±2µm
Tip Set Back 15µm
 ±5µm
Tip Radius <10 nm (G, AL-G, GD-G, GB)
<25nm (Electri)
<15nm (DLC)
Half Cone Angle 20°-25° along cantilever axis
25°-30° from side
10°-at the apex
Contact Resistance 300ohms on platinum thin film surface
