Silicon AFM probes, Tap 190

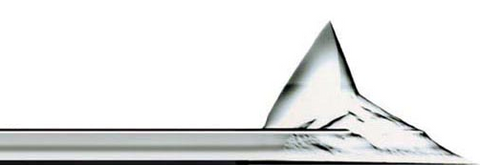

The Tap190 series silicon AFM probes with longer cantilever for tapping mode (Quesant AFM Systems). Made of monolithic silicon fitting most commercial AFM's, compatible with DI Nanoscope, PSI, JEOL, NT-MDT, Asylum, VEECO, WiTec and other commercial AFM's. The AFM cantilever and tip are micromachined with excellent uniformity and a sharp tip radius for high quality imaging. They feature alignment grooves for correct holding and calibration of probes (alignment grooves do not affect the AFM probe in systems that do not require this feature).See images for AFM probes coatings and application information.Technical Data: Tap190Rotated monolithic silicon probeSymmetric tip shapeAlignment groovesChip size 3.4 x 1.6 x 0.3mm

The Tap190 series silicon AFM probes with longer cantilever for tapping mode (Quesant AFM Systems). Made of monolithic silicon fitting most commercial AFM's, compatible with DI Nanoscope, PSI, JEOL, NT-MDT, Asylum, VEECO, WiTec and other commercial AFM's. The AFM cantilever and tip are micromachined with excellent uniformity and a sharp tip radius for high quality imaging. They feature alignment grooves for correct holding and calibration of probes (alignment grooves do not affect the AFM probe in systems that do not require this feature).

See images for AFM probes coatings and application information.

Technical Data: Tap190

  • Rotated monolithic silicon probe
  • Symmetric tip shape
  • Alignment grooves
  • Chip size 3.4 x 1.6 x 0.3mm
        Value Range
Resonant Freq. 190kHz ±60kHz
Force Constant  48N/m 20-100N/m
Length 225µm ±12µm
Mean Width               38µm ±9µm
Thickness  7µm
±1µm
Tip Height 17µm
±2µm
Tip Set Back 15µm
±5µm
Tip Radius <10 nm (G, AL-G, GD-G)
<25nm (Electri)
<15nm (DLC)
Half Cone Angle 20°-25° along cantilever axis
25°-30° from side
10°-at the apex
Contact Resistance 300ohms on platinum thin film surface


Code Title Coating Pack Size Availability Price Updated: 14-07-2024
GTPTAP190AL-G-10 Silicon AFM probes, Tap 190 Aluminium reflex coating Pack/10 3 weeks Quote only Quote
Quote
GTPTAP190AL-G-50 Silicon AFM probes, Tap 190 Aluminium reflex coating Pack/50 3 weeks Quote only Quote
Quote
GTPTAP190DLC-10 Silicon AFM probes, Tap 190 DLC coating Pack/10 3 weeks Quote only Quote
Quote
GTPTAP190DLC-50 Silicon AFM probes, Tap 190 DLC coating Pack/50 3 weeks Quote only Quote
Quote
GTPTAP190E-G-10 Silicon AFM probes, Tap 190 Conductive Cr/Pt Coating Pack/10 3 weeks Quote only Quote
Quote
GTPTAP190E-G-50 Silicon AFM probes, Tap 190 Conductive Cr/Pt Coating Pack/50 3 weeks Quote only Quote
Quote
GTPTAP190-G-10 Silicon AFM probes, Tap 190 None Pack/10 3 weeks Quote only Quote
Quote
GTPTAP190-G-50 Silicon AFM probes, Tap 190 None Pack/50 3 weeks Quote only Quote
Quote
