Silicon AFM probes, Tap 300

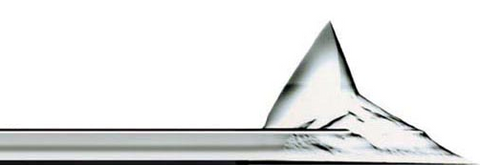

The Tap300 series are silicon AFM tapping mode probes. Made of monolithic silicon fitting most commercial AFM's, compatible with DI Nanoscope, PSI, JEOL, NT-MDT, Asylum, VEECO, WiTec and other commercial AFM's. The AFM cantilever and tip are micromachined with excellent uniformity and a sharp tip radius for high quality imaging. They feature alignment grooves for correct holding and calibration of probes (alignment grooves do not affect the AFM probe in systems that do not require this feature).See images for AFM probe coatings and application information.Technical Data: Tap300 ProbesRotated monolithic silicon probeSymmetric tip shapeAlignment groovesChip size 3.4 x 1.6 x 0.3mm

The Tap300 series are silicon AFM tapping mode probes. Made of monolithic silicon fitting most commercial AFM's, compatible with DI Nanoscope, PSI, JEOL, NT-MDT, Asylum, VEECO, WiTec and other commercial AFM's. The AFM cantilever and tip are micromachined with excellent uniformity and a sharp tip radius for high quality imaging. They feature alignment grooves for correct holding and calibration of probes (alignment grooves do not affect the AFM probe in systems that do not require this feature).

See images for AFM probe coatings and application information.

Technical Data: Tap300 Probes

  • Rotated monolithic silicon probe
  • Symmetric tip shape
  • Alignment grooves
  • Chip size 3.4 x 1.6 x 0.3mm
        Value Range
Resonant Freq. 300kHz ±10kHz
Force Constant  40N/m 20-75N/m
Length 125µm ±10µm
Mean Width               30µm ±5µm
Thickness  4µm
 ±1µm
Tip Height 17µm
 ±2µm
Tip Set Back 15µm
 ±5µm
Tip Radius <10 nm (G, AL-G, GD-G)
<25nm (Electri)
<15nm (DLC)
Half Cone Angle 20°-25° along cantilever axis
25°-30° from side
10°-at the apex


Updated: 22-01-2025
Code Title Coating Pack Size Availability Price Updated: 22-01-2025
GTPTAP300AL-G-10 Silicon AFM probes, Tap 300 Aluminium reflex coating Pack/10 3 weeks P.O.R. Quote
GTPTAP300AL-G-50 Silicon AFM probes, Tap 300 Aluminium reflex coating Pack/50 3 weeks P.O.R. Quote
Close
GTPTAP300AL-G-W Silicon AFM probes, Tap 300 Aluminium reflex coating Pack/380 3 weeks P.O.R. Quote
GTPTAP300DLC-10 Silicon AFM probes, Tap 300 DLC coating Pack/10 3 weeks P.O.R. Quote
GTPTAP300DLC-50 Silicon AFM probes, Tap 300 DLC coating Pack/50 3 weeks P.O.R. Quote
GTPTAP300E-G-10 Silicon AFM probes, Tap 300 Conductive Cr/Pt Coating Pack/10 3 weeks P.O.R. Quote
GTPTAP300E-G-50 Silicon AFM probes, Tap 300 Conductive Cr/Pt Coating Pack/50 3 weeks P.O.R. Quote
GTPTAP300-G-10 Silicon AFM probes, Tap 300 None Pack/10 3 weeks P.O.R. Quote
GTPTAP300-G-50 Silicon AFM probes, Tap 300 None Pack/50 3 weeks P.O.R. Quote
GTPTAP300GB-G-10 Silicon AFM probes, Tap 300 Overall Au coating Pack/10 3 weeks P.O.R. Quote
GTPTAP300GB-G-50 Silicon AFM probes, Tap 300 Overall Au coating Pack/50 3 weeks P.O.R. Quote
GTPTAP300-G-W Silicon AFM probes, Tap 300 None Pack/380 3 weeks P.O.R. Quote
PELTAP300GD-G-10 Silicon AFM probes, Tap 300 Part Au coating Pack/10 3 weeks P.O.R. Quote
PELTAP300GD-G-50 Silicon AFM probes, Tap 300 Part Au coating Pack/50 3 weeks P.O.R. Quote
