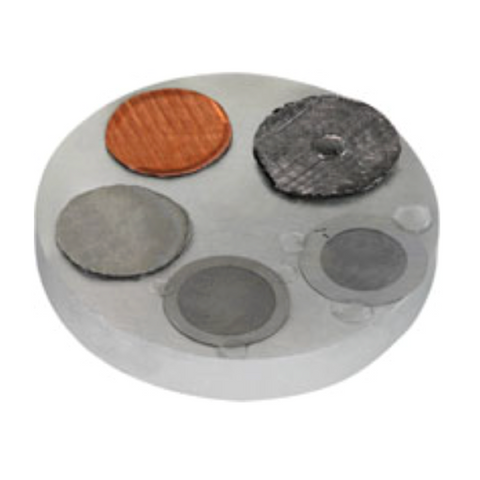

PELCO X-CHECKER SEM calibration x-ray references - Monitor Energy Dispersive Spectrometer/SEM Systems

The updated PELCO X-CHECKER is a calibration aid to help you monitor the performance of your EDS X-ray system on an SEM. It contains a series of standard materials on your choice of aluminium mount, to check detector resolution and calibration, test for contamination on the detector window, monitor low-end sensitivity, and calibrate your image analysis software.

Includes:

  • Manganese to measure full width at half max (FWHM) detector resolution
  • Aluminium and copper to check spectral calibration
  • Carbon to monitor calibration at the low end of the spectrum for thin window detectors.
  • Nickel TEM grid sizes, 40 x 40µm and 18 x 18µm, with ±5% accuracy, are furnished for checking image analysis software calibration. They also facilitate an easy test for monitoring the amount of vacuum pump oil contamination on the detector window

Instruction booklet and storage case included.

SEM mount selections Type A-R: Technical Data

Updated: 03-04-2025
Code Mount Pack Size Availability Price Updated: 03-04-2025
STP602-01 Unmounted Each 3 weeks P.O.R. Quote
STP602-01A Mount A Each 3 weeks P.O.R. Quote
STP602-01AFM Mount AFM Each 3 weeks P.O.R. Quote
STP602-01B Mount B Each 3 weeks P.O.R. Quote
STP602-01C Mount C Each 3 weeks P.O.R. Quote
STP602-01D Mount D Each 3 weeks P.O.R. Quote
STP602-01E Mount E Each 3 weeks P.O.R. Quote
STP602-01F Mount F Each 3 weeks P.O.R. Quote
STP602-01G Mount G, custom Each 3 weeks P.O.R. Quote
STP602-01K Mount K Each 3 weeks P.O.R. Quote
STP602-01L Mount L Each 3 weeks P.O.R. Quote
STP602-01M Mount M Each 3 weeks P.O.R. Quote
STP602-01O Mount O Each 3 weeks P.O.R. Quote
STP602-01P Mount P Each 3 weeks P.O.R. Quote
STP602-01Q Mount Q Each 3 weeks P.O.R. Quote
STP602-01R Mount R Each 3 weeks P.O.R. Quote
STP602-01S Mount S Each 3 weeks P.O.R. Quote

* Availability Explanation

X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.

In Stock – Plenty of stock on the shelf, ready to ship.

No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
