PELCO SEMClip geological thin section holders, M4 cylinder
These geological thin section SEM mounts can accommodate 1, 2 or 4 standard a standard geological thin section or petrographic slides secured in place by 2 clips. There are tweezer inserts for easy sample loading. Made from aluminium with copper clips and brass screws. They can be used on all Hitachi SEMs, FESEMs and FIB systems with an M4 stage adapter. All the Hitachi holders have the widely used female M4 thread.
Replacement SEMClips and screws are available.
Sizes available:
- 1, 2, 4 thin sections - up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm).
- Variable thin section from 40-20mm to 75-25mm
- Screw used is M2 x 3mm, Brass
- Clips are spring grade beryllium-copper alloy
Overall dimensions:

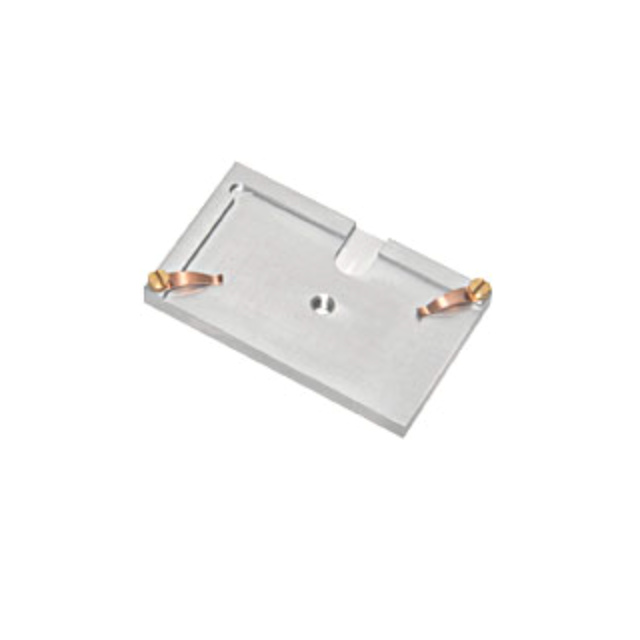

G036-1HS: 55 x 30 x 8mm

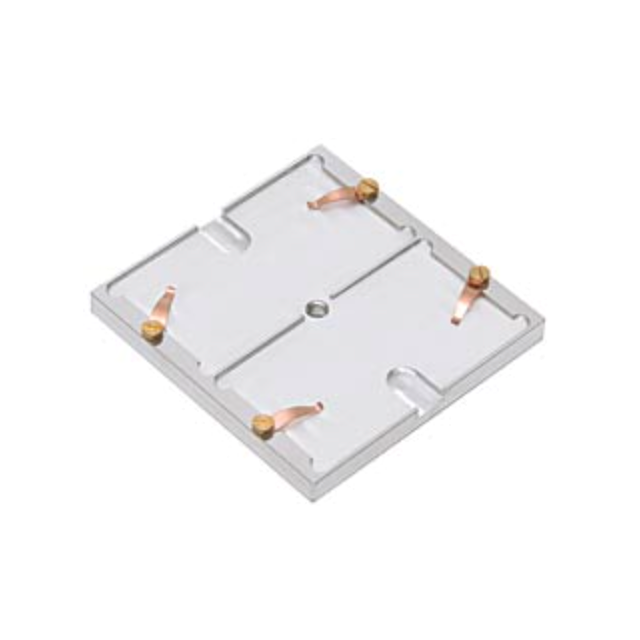

G036-2HD: 55 x 58 x 8mm

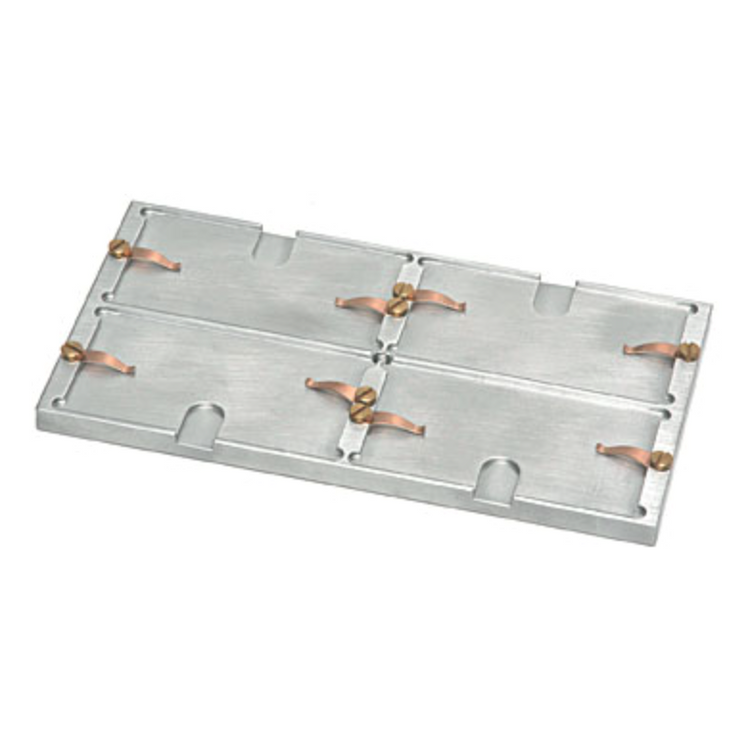

G036-3HQ: 107 x 58 x 8mm

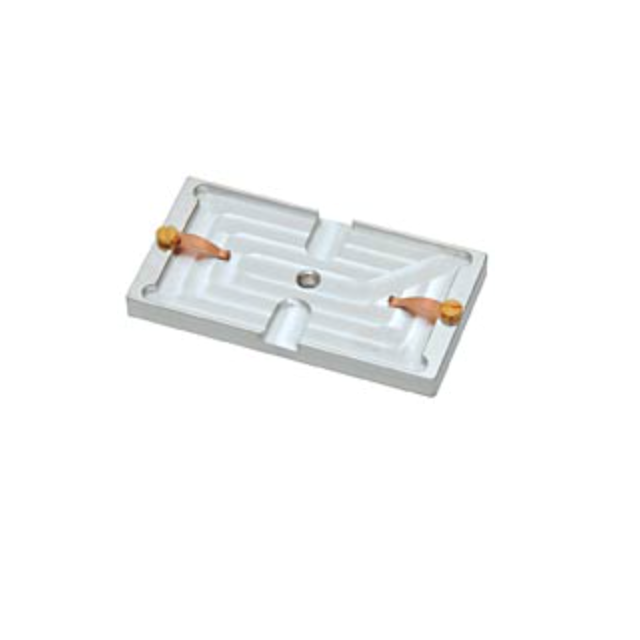

G036-4HV: 51 x 32 x 8mm
| Code | Title | Size | Clips | Pack Size | Availability | Price | Updated: 03-01-2025 |
|---|---|---|---|---|---|---|---|
| G036-1HS | PELCO SEMClip geological thin section holders, M4 cylinder | Single, 47 x 27mm | 2 | Each | 3 weeks | $398.00 AUD | |
| G036-2HD | PELCO SEMClip geological thin section holders, M4 cylinder | Double, 47 x 27mm | 4 | Each | 3 weeks | $469.00 AUD | |
| G036-3HQ | PELCO SEMClip geological thin section holders, M4 cylinder | Quadruple, 47 x 27mm | 8 | Each | 3 weeks | $529.00 AUD | |
| G036-4HV | PELCO SEMClip geological thin section holders, M4 cylinder | Variable, 40-75 x 20-25mm | 2 | Each | 3 weeks | $414.00 AUD |
