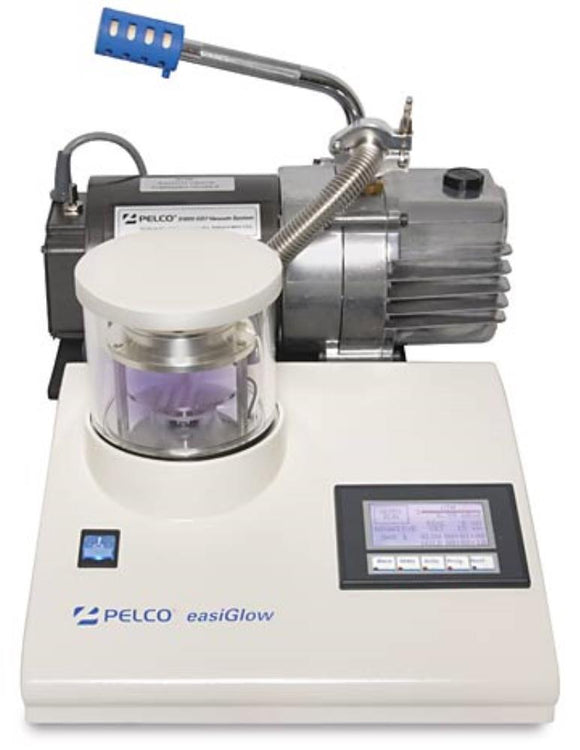

PELCO easiGlow glow discharge unit
For one of the most common glow discharge applications, making TEM support films or grids hydrophilic using air, the PELCO easiGlow uses an automated and quick cycle with fully selectable parameters. The microprocessor controlled system also offers full manual control for all parameters and an advanced protocol programming feature for custom designed glow discharge applications. Parameters and protocols can be stored to facilitate consistent glow discharge results. Open the shipping box, plug it in, and you can start.
The PELCO easiGlow Glow Discharge Cleaning System is a compact, quick and easy to use standalone system. It is primarily designed for hydrophilisation of TEM carbon support films, which have the tendency to be hydrophobic. A glow discharge treatment with air will make a carbon film surface negatively charged (hydrophilic) which allows aqueous solution to spread easily.
With increasingly demanding imaging applications, using clean and consistent quality TEM grids and supports has become more important than ever. The PELCO easiGlow is an affordable and easy to operate glow discharge system for any TEM lab.
The practical chamber size with its newly designed glow discharge head and adjustable stage with glass slide holder allows for easy loading and fast turnaround times. The system is fully microprocessor controlled and includes an intelligent touch screen device for control and display of operation parameters. The PELCO easiGlow supports both hydrophilic and hydrophobic treatment with either negative or positive charge and includes two separately controlled gas inlets. The required vacuum level is set by an electronically controlled precision proportional valve. This novel approach eliminates manual setting with a needle valve. A gentle venting procedure ensures that the TEM grids are not disturbed when the system is vented.
Optional Accessories:
| Code | Description |
|---|---|
| ETP91050 | Replacement Glass Chamber with sealed top plate |
| ETP91000-2 | Replacement Touch Screen Stylus |
| ETP91051 | O-ring for Glow Discharge Chamber |
| ETP91053 | E91050 Protective L-gasket, use with O-ring |
| ETP91010-16 | PELCO easiGlow Vacuum Connection Kit to KF16 Pump inlet |
| ETP91010-25 | PELCO easiGlow Vacuum Connection Kit to KF25 Pump inlet |
| ETP91010-30 | Dual Vacuum Connection Kit for Dual Chamber Glow Discharge System to KF 16 pump inlet |
| ETP9609 | Exhaust filter for GD7 or #7010 Rotary Vacuum Pump |
| ETP891-35 | Ultragrade 19 Rotary Pump Oil for GD7, 1L |
For more information and pricing for these accessories please enquire.
PELCO easiGlow and GD7 Vacuum Systems are available in 110V, 60Hz please enquire.
Specifications:
| Plasma Current | 0-30 mA |
| HV Power supply | 30W Continuous Rating |
| Glow Discharge Head Polarity | User Selectable positive or negative |
| Process Platform | Ø75mm with recess for 25 x 75mm slide |
| Glow Discharge Platform Height Control | 1-25 mm |
| Preprocess Hold Timer | 0-14411 sec. |
| Process Timer | 0-900 sec. |
| Chamber Size | Ø120 x 100mm H with sealed Delrin top plate (inside Ø106 x 90mm) |
| Process/Vent gas inlets | 2 each Ø6 mm barbed, individually user selectable for process, purge or vent |
| High Voltage Vacuum Interlocks | Dual hardware and software interlocked |
| Vacuum Control | Pirani Gauge, ranging from atmosphere to 0.01 mbar |
| Working Vacuum Range | 1.1 - 0.20 mbar for optimal glow |
| System Control / Display | 3" Touch Panel with LED backlight and 5 function keys |
| Operation Modes | Auto Programmed (4 user programmed protocols) Manual/Diagnostics |
| Data Logging Capabilities | Step #, Vacuum (mbar), Current (mA), Voltage (V), and polarity, once per second |
| Instrument Size | 305 L x 292 D x 230mm H |
| Weight | 6.26 kg |
| GD4 Pump (optional) | 337 L x 138 D x 244mm H |
| Weight | 11kg |
| Laboratory Footprint with optional pump | 381 W x 292 D x 330mm H |
| Power Requirements | 230V 50Hz, 10A Service |
| Instrument Power Rating | 240VAC 50Hz 60W Plus Pump, IEC Inlet |
| Optional Pump Power Rating | 230V 50Hz 370 W (1/2 hp) |
| Vacuum Pump Minimum requirements | 0.03 mbar Ultimate Vacuum |
| Vacuum Pump Power Outlet on Instrument | 8A max IEC Outlet |
| Vacuum Inlet | KF 16 flange |
| Data Logging Capabilities | Step #, Vacuum (mbar), Current (mA), Voltage (V), and polarity, once per second |
| Communication Port | USB Outlet |
