PELCO Dimpler platen sets

Platens sets are designed for use with the PELCO Dimpler. There are two platen sets intended for 3mm standard disc samples, the Standard Platen Set, with the through-hole, and the Adjustable Platen Set. The through-hole allows inspection of the sample while backlit. This is very useful to determine when a hole forms in metal samples, or when a silicon cross-section or similar sample has become thin. The adjustable base provides a crosshair for easy sample positioning, and is cross-compatible with Lapping Fixtures, allowing the sample to be efficiently thinned and flat polished prior to dimpling without having to demount it.The Large Area Platen set is designed to work with the Large Area Tools for selective area polishing applications such as semiconductor delayering and deprocessing. It may also be useful anywhere a larger specimen or area needs to be polished, or a shallower dimple is desired. The set consists of the Large Area Platen and the Large Area Magnetic base. Th...

Platens sets are designed for use with the PELCO Dimpler. There are two platen sets intended for 3mm standard disc samples, the Standard Platen Set, with the through-hole, and the Adjustable Platen Set. The through-hole allows inspection of the sample while backlit. This is very useful to determine when a hole forms in metal samples, or when a silicon cross-section or similar sample has become thin. The adjustable base provides a crosshair for easy sample positioning, and is cross-compatible with Lapping Fixtures, allowing the sample to be efficiently thinned and flat polished prior to dimpling without having to demount it.

The Large Area Platen set is designed to work with the Large Area Tools for selective area polishing applications such as semiconductor delayering and deprocessing. It may also be useful anywhere a larger specimen or area needs to be polished, or a shallower dimple is desired. The set consists of the Large Area Platen and the Large Area Magnetic base. The platen is 25mm in diameter and flat, to allow easy mounting of large flat samples such as electronic chips or dies up to 22 x 22mm. Larger samples can be accommodated as long as they are sufficiently rigid.

The Standard Platen may also be used for X-Y stage alignment in combination with the 3i tool supplied with the Dimpler.

A new addition to the Dimpler Platen lineup is a variant of the large area platen that accommodates 25.4mm pin stub mounts, allowing for easy transfer between the Dimpler and the SEM. It accepts 6mm pin stub mounts, which are securely held in place with dual set screws. A pin stub and hex key are included with the mount.

Available:

Code Description
ETP83027 Standard Platen Set (with through-hole) - Consists of Sapphire Flat (ETP83001), Standard Platen (ETP83002), Slurry Ring (ETP83003), and Magnetic Base (ETP83008)
ETP83032 Adjustable Platen Set: Consists of Sapphire Flat (ETP83001), Adjustable Platen (ETP83004), Slurry Ring (ETP83003), and Magnetic Base (ETP83008)

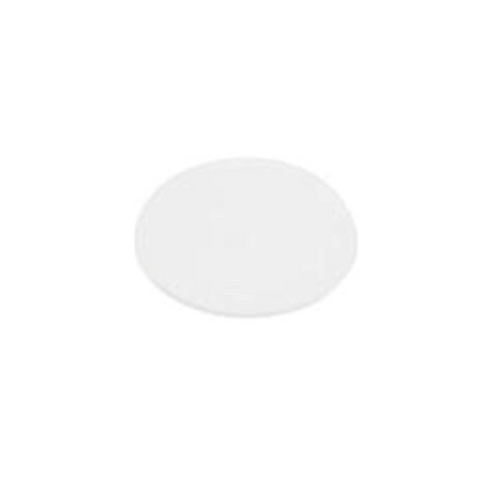

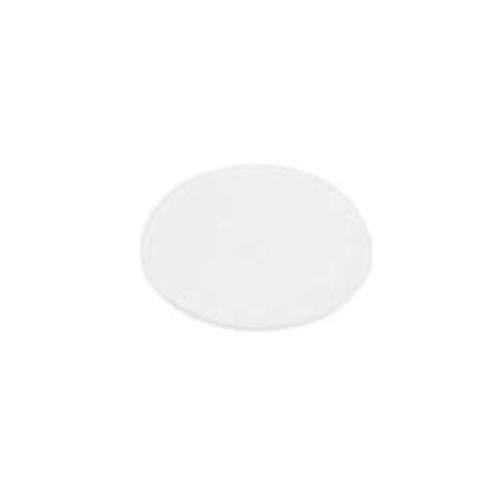

ETP83001 Sapphire Flat
ETP83042 Large Platen Set: Consists of Large Area Platen (ETP83040) and Large Area Magnetic base (ETP83007).
ETP83001 Sapphire Flat

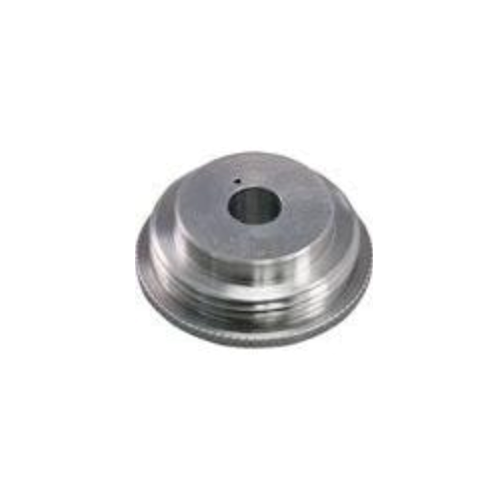

ETP83002 Standard Platen (with through-hole)

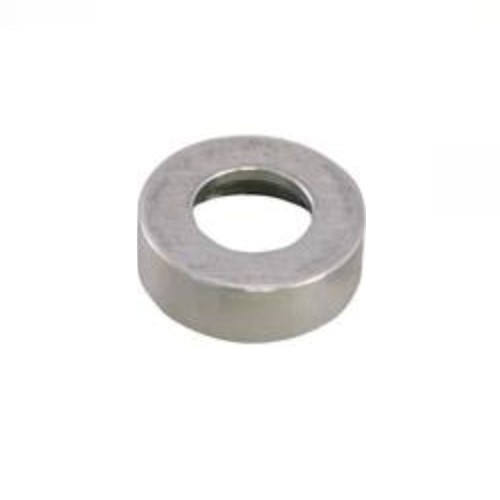

ETP83003 Slurry Retainer Ring for Standard and Adjustable Platens
ETP83007 Magnetic Base for Large Area Tool
ETP83008 Magnetic Base for Standard and Adjustable Platen
ETP83040 Platen for Large Area Tools
ETP83043 Pin Stub Holder Platen for Large Area Tools

Also available: ETP83004 - Adjustable Platen, Fits PELCO 15000 Lapping Fixture

Code Title Type Pack Size Availability Price Updated: 13-07-2024
ETP83001 PELCO Dimpler platen sets Sapphire flat Each 2 weeks Quote only Quote
Quote
ETP83002 PELCO Dimpler platen sets Standard platen Each 2 weeks Quote only Quote
Quote
ETP83003 PELCO Dimpler platen sets Slurry retainer ring Each 2 weeks Quote only Quote
Quote
ETP83007 PELCO Dimpler platen sets Magnetic base, large Each 2 weeks Quote only Quote
Quote
ETP83008 PELCO Dimpler platen sets Magnetic base, standard Each 2 weeks Quote only Quote
Quote
ETP83027 PELCO Dimpler platen sets Standard platen set Each 2 weeks Quote only Quote
Quote
ETP83032 PELCO Dimpler platen sets Adjustable platen set Each 2 weeks Quote only Quote
Quote
ETP83040 PELCO Dimpler platen sets Large platen Each 2 weeks Quote only Quote
Quote
ETP83042 PELCO Dimpler platen sets Large platen set Each 2 weeks Quote only Quote
Quote
ETP83043 PELCO Dimpler platen sets Pin stub holder platen Each 2 weeks Quote only Quote
Quote
