PELCO HistoWave cassette system and accessories

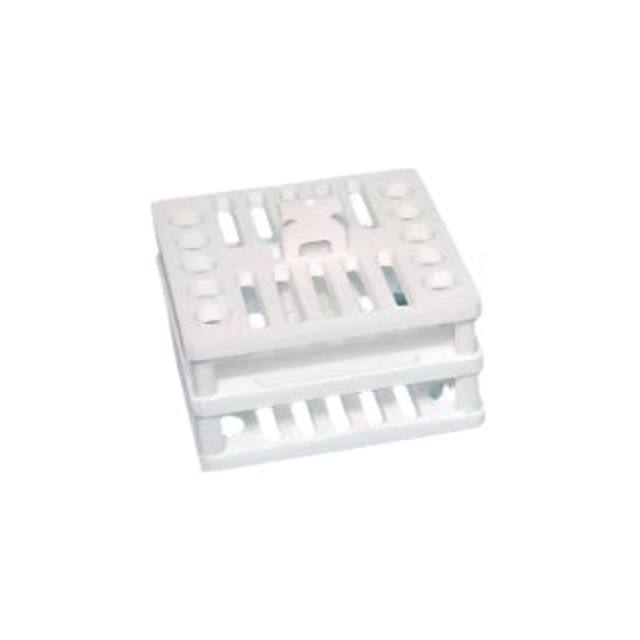

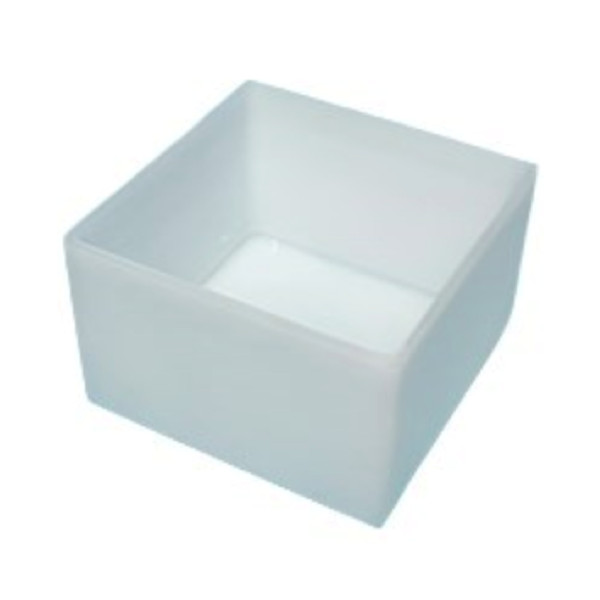

The PELCO HistoWave cassette system consists of a seamless, thick-walled cassette tank and a cassette rack which are also available individually. The design provides for ease of loading, unloading and fluid exchange during processing. The system will hold 26 standard-sized plastic cassettes or 22 standard and 2 over-sized cassettes. There is a hole in the handle for the temperature probe. The amount of reagent needed to cover 1 or 26 cassettes is approximately 500ml. Tank volume 940ml. It is easiest to add solutions when the system is assembled. The system is made of microwave-compatible and solvent-resistant plastics.

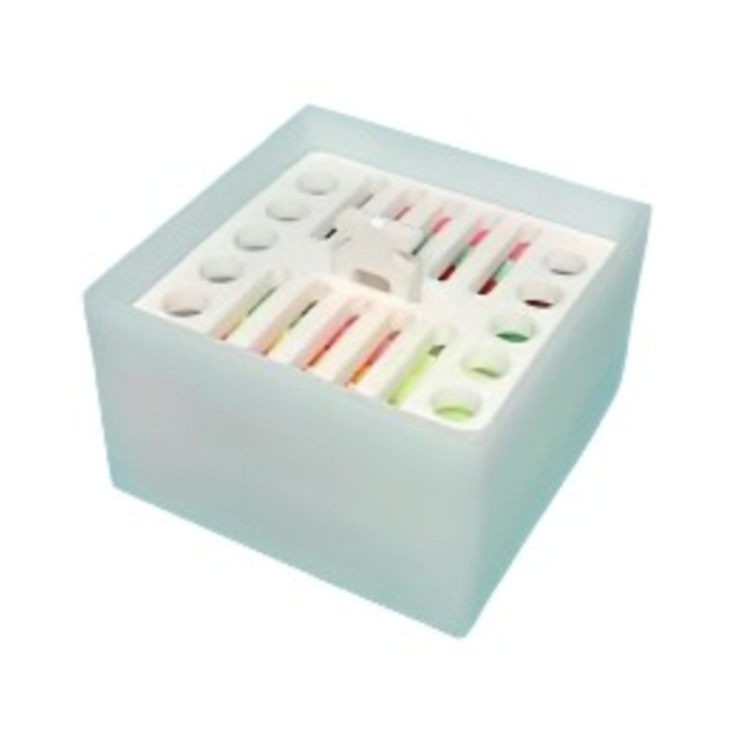

Cassette rack shown assembled and loaded, note the two over-sized (white) cassettes being accommodated in the centre of the rack. Optional paraffin heating tile available.

Dimensions of Cassette Holder (with handle):
79.4mm H x 111.2mm square
Inside Dimensions of Cassette Tank:
73mm D x 115.1mm square

Size of Standard Histology Cassette:
Length: 4.06cm
Width: 2.86cm
Depth: 0.7cm

Size of Over-Sized Histology Cassette:
Length: 4.30cm
Width: 2.86cm
Depth: 1.30cm

Note:

• The PELCO HistoWave cassette system may also be used in the PELCO TissueVac vacuum chamber, E36160, which is an accessory for the PELCO Microwave Tissue Processing Systems.
• The 36150 will NOT fit into the E3435 PELCO EM microwave vacuum chamber.
