Rotary vane pumps RVP Series

The RVP Series line of quality rotary vane pumps will meet your demands for high pumping speed combined with high ultimate vacuum. These dual stage rotary vane pumps are reliable, efficient and competitively priced. High quality engineering has resulted in corrosive-resistant pumps with a compact design coupled to quiet and low vibration operation.These pumps are ideally suited for many applications in labs and small production systems such as analytical instruments, electron microscopes, sputter coaters, carbon coaters, vacuum deposition systems, freeze drying, vacuum ovens and furnaces, or as backing pumps for high vacuum turbo or diffusion pumps.Features:6m3, 12m3 and 24m3 pumping capacityExtremely quiet operationVirtually vibration freeCompact designCorrosion resistantAnti-suck-back designMultiple voltage motors

The RVP Series line of quality rotary vane pumps will meet your demands for high pumping speed combined with high ultimate vacuum. These dual stage rotary vane pumps are reliable, efficient and competitively priced. High quality engineering has resulted in corrosive-resistant pumps with a compact design coupled to quiet and low vibration operation.

These pumps are ideally suited for many applications in labs and small production systems such as analytical instruments, electron microscopes, sputter coaters, carbon coaters, vacuum deposition systems, freeze drying, vacuum ovens and furnaces, or as backing pumps for high vacuum turbo or diffusion pumps.

Features:

  • 6m3, 12m3 and 24m3 pumping capacity
  • Extremely quiet operation
  • Virtually vibration free
  • Compact design
  • Corrosion resistant
  • Anti-suck-back design
  • Multiple voltage motors

Technical Data

Specifications:

Model RVP 100-3.5 RVP 200-7 RVP 400-14
Product Number VTP92080
VTP92080-220		 VTP92081
VTP92081-220		 VTP92082
VTP92082-220

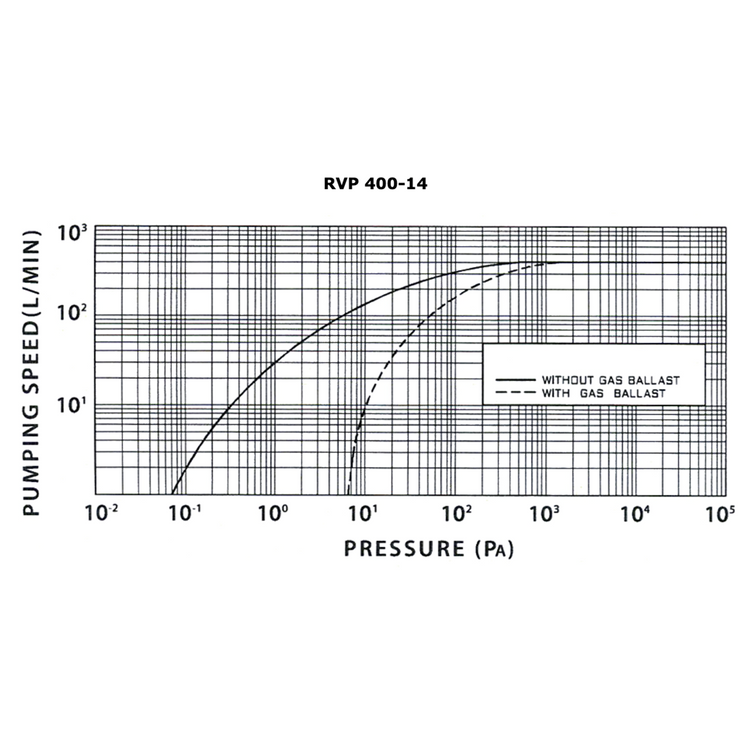

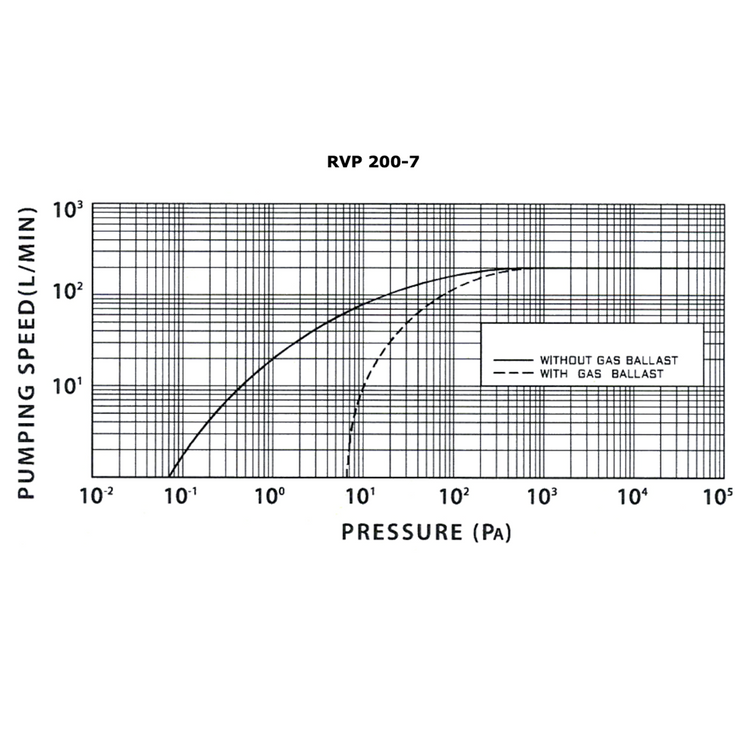

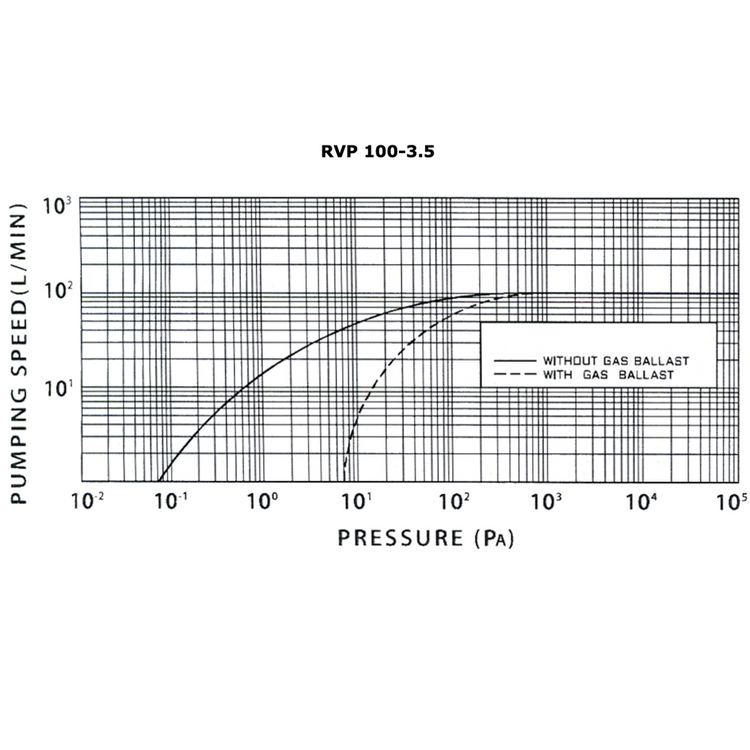

Pumping Speed @ 60Hz 100L/min,
6m3/h		 200L/min,
12m3/h		 400L/min,
24m3/h
Noise 50dB 50dB 52dB

Overall Dimensions (W x L H)

 150 x 392 x 250mm 150 x 423 x 250mm 170 x 484 x 287mm
Motor Speed 1700rpm
Ultimate Pressure, Gas Ballast Closed ≤1x10-3 Torr (1.3x10-1Pa)
Ultimate Pressure w/ Gas Ballast Open 5 x10-2 Torr (6.7Pa)
Intake & Exhaust Type NW25
Oil Capacity 500cc 600cc 1500cc
Recommended Pumping Fluid PELCO Ultra 19
PEL891-31-1
Full Load Power 0.4kW 0.75kW
Power Input Options 115VAC 1 dia. 50/60Hz
230VAC 1 dia.  50/60Hz
Weight, Net 23kg 23kg  >35kg
Ambient Operating Temperature 7°C to 40°C
Updated: 26-12-2024
Code Title Pumping Speed Voltage Pack Size Availability Price Updated: 26-12-2024
VTP92080 Rotary vane pumps RVP Series 100L/min 115V Each 3 weeks P.O.R. Quote
VTP92080-220 Rotary vane pumps RVP Series 100L/min 230V Each 3 weeks P.O.R. Quote
VTP92081 Rotary vane pumps RVP Series 200L/min 115V Each 3 weeks P.O.R. Quote
VTP92081-220 Rotary vane pumps RVP Series 200L/min 230V Each 3 weeks P.O.R. Quote
VTP92082 Rotary vane pumps RVP Series 400L/min 115V Each 3 weeks P.O.R. Quote
VTP92082-220 Rotary vane pumps RVP Series 400L/min 230V Each 3 weeks P.O.R. Quote
