Round vacuum desiccator and accessories

The space-saving design of the desiccator dome provides maximum interior clearances, giving an average of 13% greater interior volume than standard hemispherical domes. Made with a clear polycarbonate top and white polypropylene bottom (clear base is polycarbonate), extra heavy walls eliminate the danger of implosion. This strong, shatterproof desiccator will hold a vacuum of 0.09MPa for a period of 24 hours. Maximum temperature 41°C.

Features:

• Stopcock - Polypropylene with PTFE plug which turns easily, allowing a slow, gentle entrance of air to prevent unnecessary turbulence and specimen damage. Stopcock handle is high-visibility red. Port accepts 6.4mm I.D. tubing. Use VRI-2 or Diaphragm Pumping Kit to evacuate the desiccators.
• Neoprene o-ringNEOPRENE - seal does not require grease, but is not harmed if grease is used. Seal is unaffected by low temperatures down to 0°C.
• Polypropylene bottom - Excellent chemical resistance and permits the use of incandescent crucibles with standard size porcelain plates. The base of the all clear version is polycarbonate.
• Perforated plate - Polypropylene plate supplied is 3.2mm thick 3.2 diameter perforations for air transfer. Plate rests on the retaining ledge of bottom section and has a centre hole for easy removal. Desiccant needs to be purchased separately.

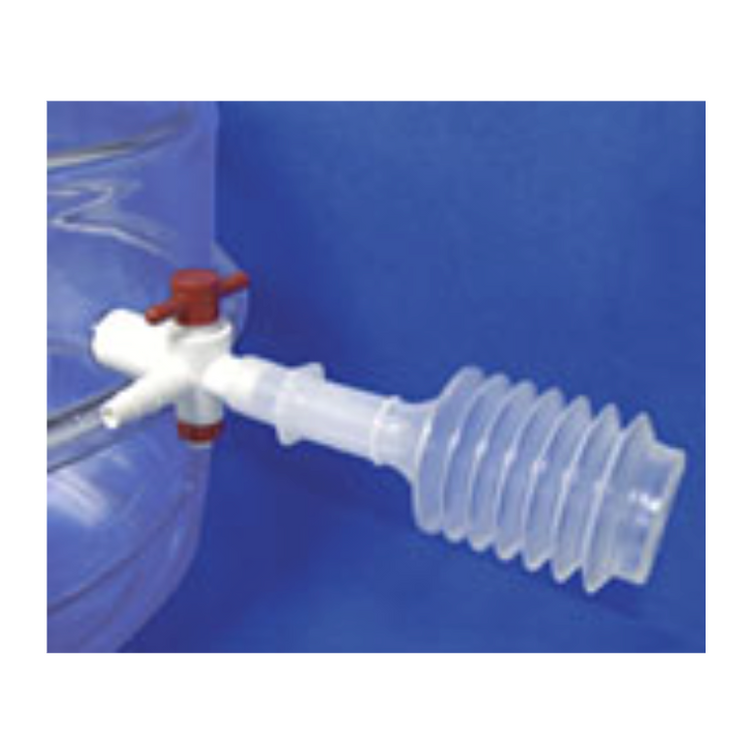

• Vacuum pressure indicator - Only suitable for model ETP2240-1. The bellows collapse when there is vacuum within the desiccator and expand under ambient atmospheric pressure. The indicator fits on the tapered outlet of desiccator stopcock without requiring special tools.

Specifications:
