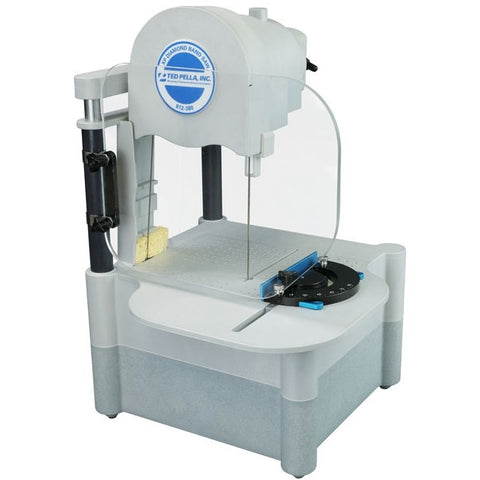

XP diamond band saw
The XP Diamond Band saw is the newest member of the XP line of cutting and polishing equipment from Ted Pella. This lightweight bandsaw is designed for medium precision, efficient cutting of hard and brittle materials. The saw is also rugged enough to cut through materials such as soft metals and polymers while keeping a small footprint on the lab bench. Samples can be fed into the blade by hand or using the miter jig. The diamond plated, steel core blades are designed for long life under normal conditions. Easy blade access and replacement procedures make occasional saw maintenance extremely simple. Coolant, typically water, is contained in a large reservoir in the base of the saw. Other cutting fluids are not recommended.
The XP Diamond Band Saw ships with one blade that needs to be installed before use.
Features:
- Large cutting table for cutting bulk samples
- Miter Gauge to guide samples for straight or angled cutting
- Direct drive motor – no belts to replace
- Simple, rugged construction with easily replaceable parts
- Shatter-resistant splash guard
Specifications:
| Power | 220-240VAC, 50Hz, 120W max |
| Speed | 2550 RPM |
| Maximum Sample Diameter | 82.6mm |
| Standard Blade Thickness | 0.56mm |
| Cutting Table Dimensions | 300 x 330mm |
| Overall Dimensions (W x D x H) | 356 x 343 x 483mm |
| Weight | 6.8kg |
Replacement parts available:
| Code | Description |
|---|---|
| ETP812-392 | Diamond Band Saw Blade, Single |
| ETP812-383 | Replacement Blade Guides |
| ETP812-384 | Replacement Band Kit |
| ETP812-385 | Replacement Lower Wheel |
| ETP812-386 | Replacement Upper Wheel |
| ETP812-387 | Replacement Upper Blade Guide |
| ETP812-388 | Replacement Collar |
| ETP812-389 | Replacement Lower Guide Holder |
| ETP812-390 | Replacement Lower Shaft Assembly |
| Code | Type | Pack Size | Availability | Price | Updated: 27-06-2026 |
|---|---|---|---|---|---|
| ETP812-381 | Band saw | Each | 5 weeks | P.O.R. | Quote |
| ETP812-382 | Saw blade | Each | 5 weeks | P.O.R. | Quote |
| ETP812-383 | Blade guide | Each | 5 weeks | P.O.R. | Quote |
| ETP812-384 | Band kit | Each | 5 weeks | P.O.R. | Quote |
| ETP812-385 | Lower wheel | Each | 5 weeks | P.O.R. | Quote |
| ETP812-386 | Upper wheel | Each | 5 weeks | P.O.R. | Quote |
| ETP812-387 | Upper blade guide | Each | 5 weeks | P.O.R. | Quote |
| ETP812-388 | Collar | Each | 5 weeks | P.O.R. | Quote |
| ETP812-389 | Lower guide holder | Each | 5 weeks | P.O.R. | Quote |
| ETP812-390 | Lower shaft assembley | Each | 5 weeks | P.O.R. | Quote |
