XP20 grinder and polisher

The XP20 grinder and polisher is a compact 8"/20.3cm grinder, lapper and polisher, well suited for manual finishing of specimens using PSA discs and diamond or aluminium oxide films. The housing is made from sturdy, non-corroding plastic. The durable 1/4 hp motor has a variable speed control for 0-2800rpm to select the optimum speed for grinding or polishing. The XP 20 includes a flexible and adjustable water spout for grinding, lapping and polishing applications. The XP 20 also comes with a standalone fluid supply system for use where running water or drainage is not available or not advised. When using the standalone fluid supply system, slurries and suspensions as well as water may be dispensed. This grinder/polisher is ideally suited for smaller labs and priced so that you can afford multiple dedicated XP 20 Grinder/Polishers.Available:ETP812-372 - 203mm Aluminium Platen of the XP 20 Grinder/Polisher is of the screwback type (le...

The XP20 grinder and polisher is a compact 8"/20.3cm grinder, lapper and polisher, well suited for manual finishing of specimens using PSA discs and diamond or aluminium oxide films. The housing is made from sturdy, non-corroding plastic. The durable 1/4 hp motor has a variable speed control for 0-2800rpm to select the optimum speed for grinding or polishing. The XP 20 includes a flexible and adjustable water spout for grinding, lapping and polishing applications. The XP 20 also comes with a standalone fluid supply system for use where running water or drainage is not available or not advised. When using the standalone fluid supply system, slurries and suspensions as well as water may be dispensed. This grinder/polisher is ideally suited for smaller labs and priced so that you can afford multiple dedicated XP 20 Grinder/Polishers.

Available:

ETP812-372 - 203mm Aluminium Platen of the XP 20 Grinder/Polisher is of the screwback type (leaving a flat surface on top) and can be easily exchanged for platens with other grinding/lapping/polishing discs.

ETP812-373 - Replacement Splash Guard for the XP 20 Grinder/Polisher

Specifications:

Power 1/4 hp, 110V/3.6A or 230V/1.8A
Disc Size 203mm
Disc Type Screw back type (1/4"-20 thread)
Speed Control 0-2800 RPM
Water Supply Flexible water spout with variable control
Water Connection 3/16" tubing connection - 3ft 3/16" tubing included
Drain 1/2" tubing connection - 3ft 1/2" drain hose included
Overall Dimensions 300mm W x 305mm D x 216mm H
Weight 4.3kg

Consumables available for use with the XP 20 Grinder/Polisher:

  • Grinding Discs & Films
  • Lapping Films
  • Polishing Cloths
  • Polishing Compounds, Paste, Sprays, Suspensions
  • Metal Cleaning/Polish Compounds
Code Title Type Pack Size Availability Price Updated: 16-07-2024
ETP812-370 XP20 grinder and polisher XP20, 110V Each 3 weeks Quote only Quote
Quote
ETP812-371 XP20 grinder and polisher XP20, 220V Each 3 weeks Quote only Quote
Quote
ETP812-372 XP20 grinder and polisher Replacement platen Each 3 weeks Quote only Quote
Quote

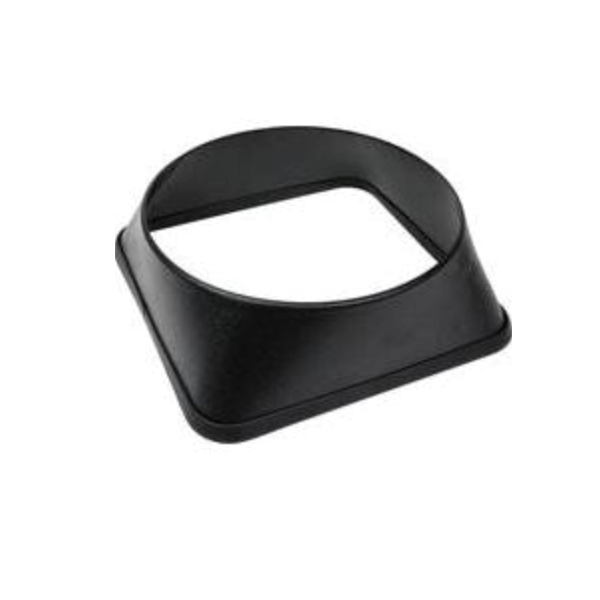

ETP812-373 XP20 grinder and polisher Replacement splash guard Each 3 weeks Quote only Quote
Quote
