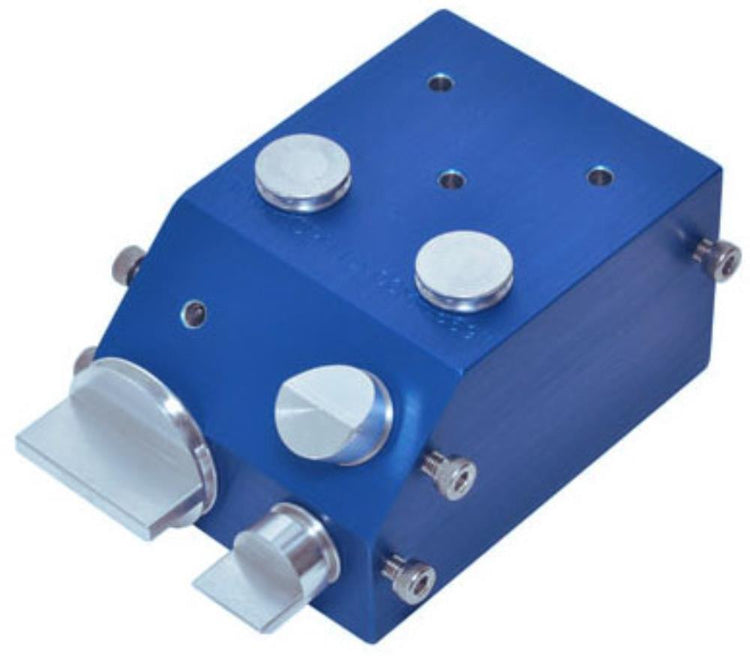

PELCO multi-angle SEM specimen preparation station

Multi-angle SEM specimen preparation block holds standard pin mounts in horizontal and vertical position and at 45 degrees, for easy mounting on pre-tilted specimen mounts. The vertical and 45 degree planes prevent specimen from moving when mounted on vertical and 45 degree specimen mounts. Locking screws are provided to secure the mounts during specimen preparation. Holds multiple pin mounts with 12.7 and 25mm diameter. The horizontal plane holds 5 pin mounts and is also useful for holding large pin mounts or pin mount type holders when mounting specimens.

Material: blue anodised, solid aluminium with stainless steel locking screws.

Overall dimensions: 70 x 70 x 40mm.

Code Title Pack Size Availability Price
G066 PELCO multi-angle SEM specimen preparation station each 2 weeks $175.00 AUD
Code Title Pack Size Availability Price
G066 PELCO multi-angle SEM specimen preparation station each 2 weeks $175.00 AUD
