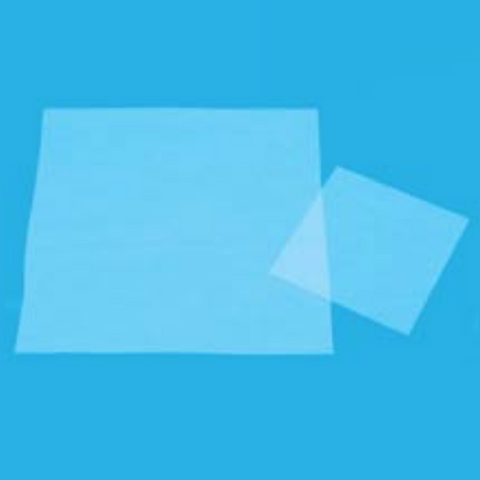

Screening mesh, polyester, 305 x 305mm
Also called plankton nets. These precision screening cloths are woven with monofilament fibres (single threads) with accurate diameters, resulting in a mesh with precise openings that resist clogging and are easy to clean. Mesh screening is suited for sifting, straining, filtration and immersion applications. Used in sample preparation, sorting and prototyping in laboratories and shops. Polyester mesh is stronger than nylon in wet conditions. Maximum temperature is 127°C. Colour is opaque to translucent white.Available in one pre°Cut size; 305 x 305mm, or on a 1m wide roll; minimum order 90cmSpecifications for polyester mesh sizesCat. No.MeshOpenings per sq. inchThread dia. inchThread dia. MicrometreOpening size inchOpening size MicrometreOpen area %Micron ratingW422-05050...
Also called plankton nets. These precision screening cloths are woven with monofilament fibres (single threads) with accurate diameters, resulting in a mesh with precise openings that resist clogging and are easy to clean. Mesh screening is suited for sifting, straining, filtration and immersion applications. Used in sample preparation, sorting and prototyping in laboratories and shops. Polyester mesh is stronger than nylon in wet conditions. Maximum temperature is 127°C. Colour is opaque to translucent white.
Available in one pre°Cut size; 305 x 305mm, or on a 1m wide roll; minimum order 90cm
Specifications for polyester mesh sizes
Cat. No. | Mesh | Openings per sq. inch | Thread dia. inch | Thread dia. Micrometre | Opening size inch | Opening size Micrometre | Open area % | Micron rating |
W422-050 | 50 | 46 x 46 | 0.0074 | 188 | 0.0148 | 376 | 46 | 375 |
W422-100 | 100 | 109 x 109 | 0.0034 | 86 | 0.0059 | 150 | 41 | 150 |
W422-150 | 150 | 145 x 145 | 0.003 | 76 | 0.0039 | 100 | 32 | 100 |
W422-300 | 300 | 320 x 320 | 0.0016 | 41 | 0.0016 | 41 | 25 | 40 |
W422-400 | 400 | 371 x 371 | 0.0017 | 43 | 0.0011 | 28 | 16 | 27 |
Please choose carefully. Returns of this item are subject to approval.
Code | Title | Mesh size | Pack Size | Availability | Price | Updated: 04-05-2024 |
---|---|---|---|---|---|---|
W422-050L | Screening mesh, polyester, 305 x 305mm | 50 mesh | Each | 3 weeks | $67.00 AUD | |
W422-100L | Screening mesh, polyester, 305 x 305mm | 100 mesh | Each | 3 weeks | $65.00 AUD | |
W422-150L | Screening mesh, polyester, 305 x 305mm | 150 mesh | Each | 3 weeks | $67.00 AUD | |
W422-300L | Screening mesh, polyester, 305 x 305mm | 300 mesh | Each | 3 weeks | $90.00 AUD | |
W422-400L | Screening mesh, polyester, 305 x 305mm | 400 mesh | Each | 3 weeks | $99.00 AUD | |
