BEEM embedding capsules, size 00, PE
BEEM pioneered the development of certain TEM specimen preparation products. Their embedding capsule remains a standard product for routine EM. Pre-formed capsule tips reduce trimming time and produce cleaner surfaces.
- A hinged cap is used for closure or may be used for making flat-tipped molds.
- Hardened blocks may be removed using a BEEM Capsule Press. Filling the capsules is made easier with BEEM Capsule Holders.
- Capsule size 00 is preferred, but for specimens with certain shapes (long, particulate) see BEEM bottle-neck or conical capsules.
- For smaller specimen sizes, a smaller capsule size is available.
- Polyethylene capsules have long been preferred in standard EM resin preparation. Acrylic resins and UV polymerisation technology have increased the use of gelatin capsules.
Glauert AM, Sept. 1991: Epoxy resins: an update on their selection and use. Microscopy and Analysis, pp 15-20
BEEM Embedding Capsule 00 Produces blocks 7.9mm OD.
Available:

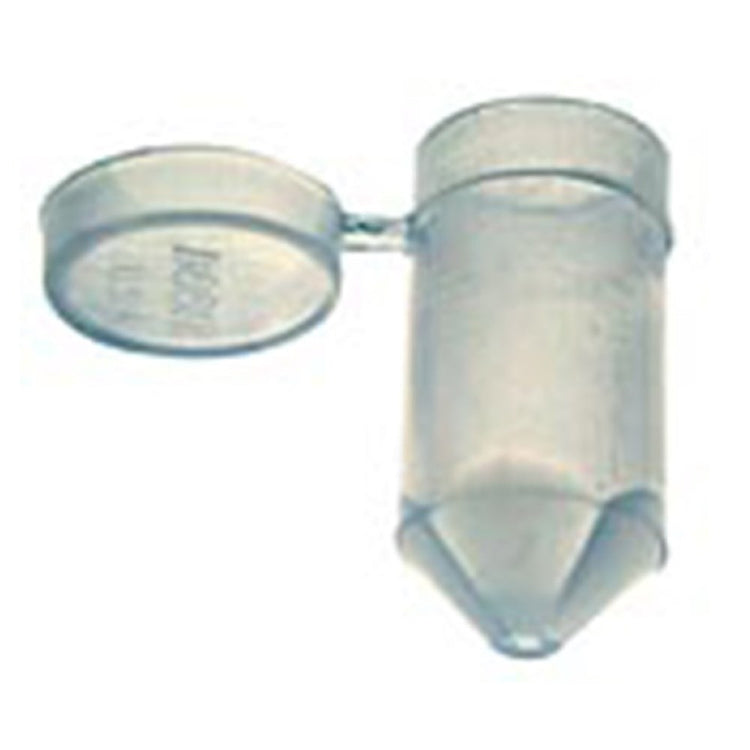

| LTP130 | Standard capsules, size 00 | Block with 1 x 1mm face at tip of truncated pyramid, hinged cap. ID 7.9mm |

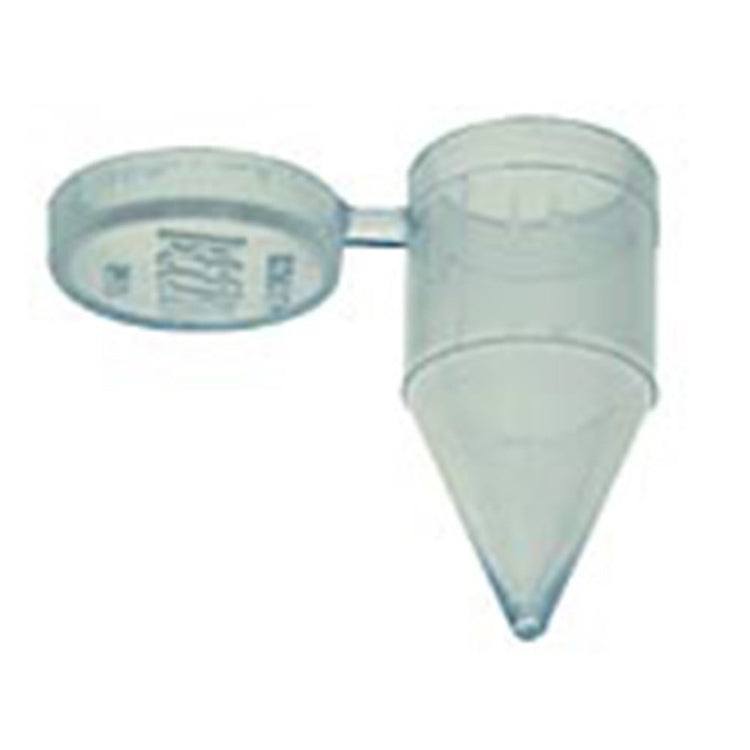

| LTP130-SPC | Conical capsules, size 00 | Block with conical tip, hinged cap. OD 7.9mm |

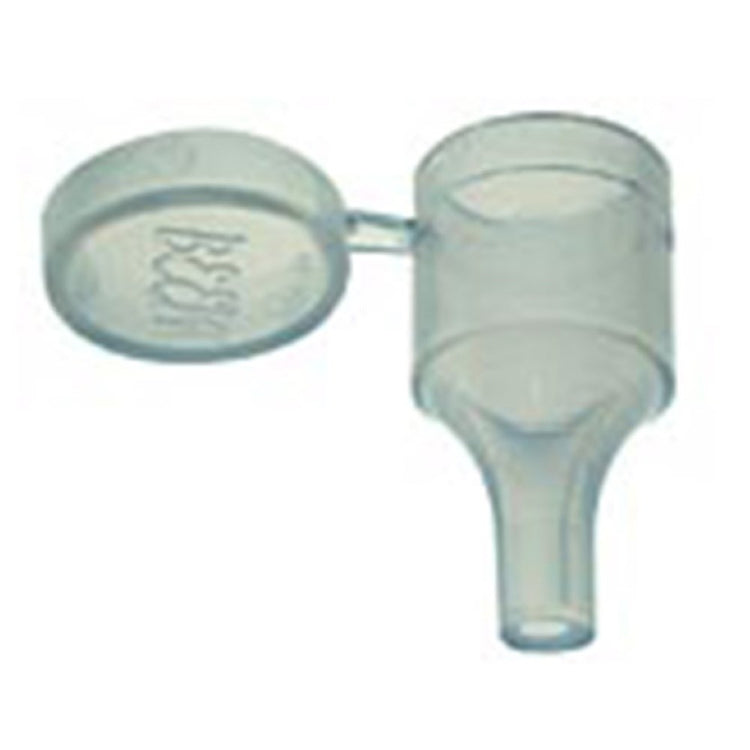

| LTP130-SPB | Bottle-neck capsules, size 00 | Block with a haemihyperpoloid tip, hinged cap. ID 7.9mm |
|

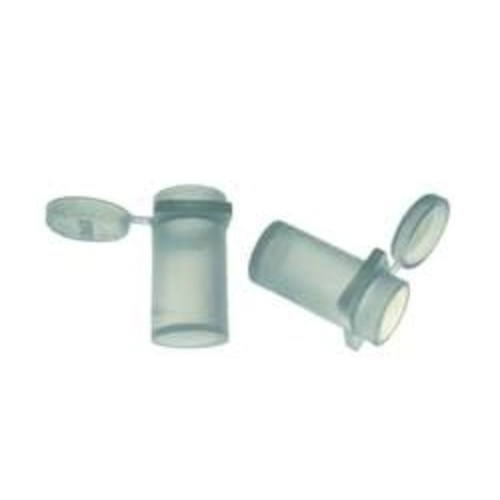

LTP133-P |
Flat bottom capsules, size 00 | 7.92mm diameter x 18.87mm deep, 9.6mm external diameter (microwave up to 100°C) |
* Ordering Schedule
This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 4 weeks.
This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
