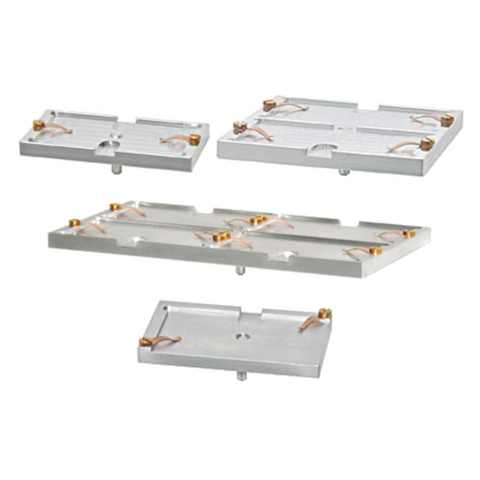

PELCO SEMClip geological thin section holders, pin mount
These geological thin section SEM mounts can accommodate 1, 2 or 4 standard a standard geological thin section or petrographic slides secured in place by 2 clips. There are tweezer inserts for easy sample loading. Made from aluminium with copper clips and brass screws. Pin stub PELCO SEMClip can be used with all SEMs using pin stubs: FEI/Philips, ZEISS/LEO, Cambridge, Leica, Amray, CamScan and Tescan.
Replacement SEMClips and screws are available.
Sizes available:
- 1, 2, 4 thin sections - up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm).
- Variable thin section from 40-20mm to 75-25mm
- Screw used is M2 x 3mm, Brass
- Clips are spring grade beryllium-copper alloy
Overall dimensions
G036-1S: 55 x 30 x 8mm
G036-2D: 55 x 58 x 8mm
G036-3Q: 107 x 58 x 8mm
G036-4V: 51 x 32 x 8mm
| Code | Title | Size | Clips | Pack Size | Availability | Price | Updated: 27-12-2024 |
|---|---|---|---|---|---|---|---|
| G036-1S | PELCO SEMClip geological thin section holders, pin mount | Single, 47 x 27mm | 2 | Each | 3 weeks | $428.00 AUD | |
| G036-2D | PELCO SEMClip geological thin section holders, pin mount | Double, 47 x 27mm | 4 | Each | 3 weeks | $470.00 AUD | |
| G036-3Q | PELCO SEMClip geological thin section holders, pin mount | Quadruple, 47 x 27mm | 8 | Each | 3 weeks | $542.00 AUD | |
| G036-4V | PELCO SEMClip geological thin section holders, pin mount | Variable, 40-75 x 20-25mm | 2 | Each | 3 weeks | $412.00 AUD |
* Availability Explanation
X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
In Stock – Plenty of stock on the shelf, ready to ship.
No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
