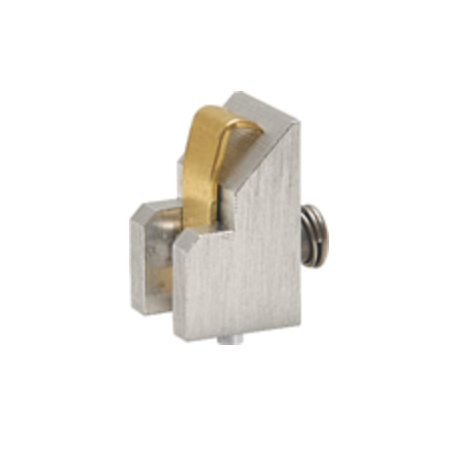

SEM 45 deg. thin section specimen clip mount, M4 cylinder
This thin section mount is made of aluminium with spring-loaded brass clamping and grounding clip and holds sample at a 45° angle. Clip width is 6.35mm. Accommodates a sample thickness up to 11mm. The clip provides minimal surface clamping area and grounding on the imaged surface.
Extended Button (GTP15372-10) is needed when used with the Dovetail Stage Adapters (GTP15371 or GTP15397).
Specifications:
- Fixed 45° angle, 6.35mm clip width
- Screws used are 4-40 x 3/16 truss head screw, stainless steel and 2-56 x 3/16 pan head, stainless steel.
| Code | Pack Size | Availability | Price | Updated: 12-05-2025 |
|---|---|---|---|---|
| GTP15460 | Each | 3 weeks | P.O.R. | Quote |
* Availability Explanation
X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
In Stock – Plenty of stock on the shelf, ready to ship.
No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
