Scale reticle for peak measuring magnifiers, 10x 35mm

For 7x (26mm), 10x (35mm) and 15x (26mm) Peak measuring magnifiers.

Any scale with the corresponding diameter may be fitted to the above magnifiers for special sizing purposes.

However, high power magnifiers have a limited field-of-view. The 30x magnifier (which takes a 26mm reticle) 'sees' only 7mm and therefore these special reticules would rarely be any use.

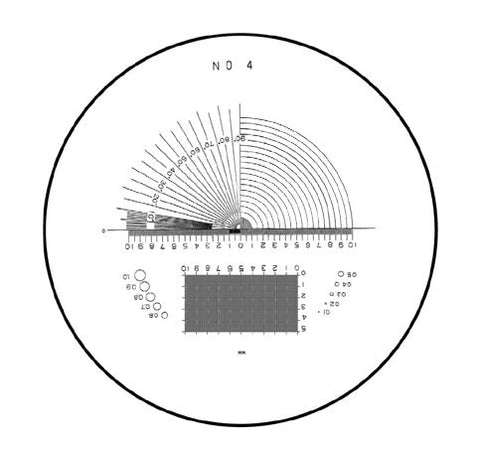

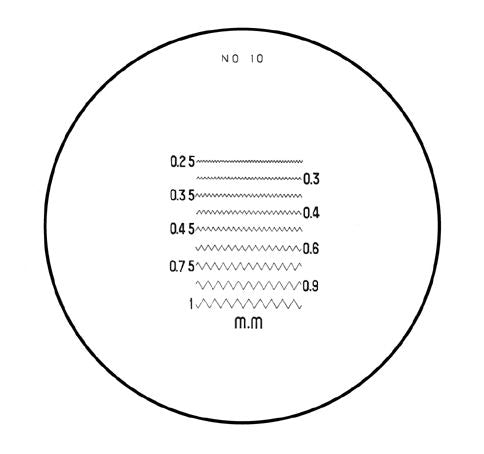

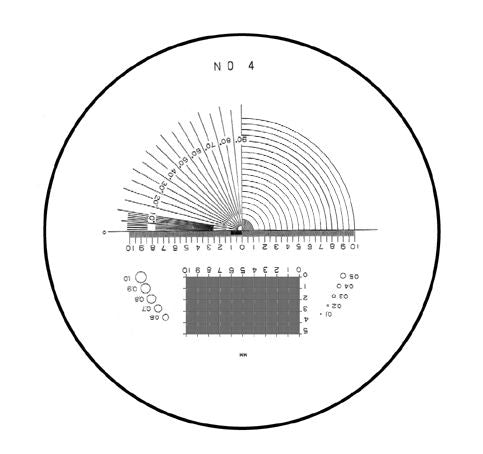

Select an option online to see image of scale.

Divisions of straight scales:

• No. 1 - Length 20mm, divisions 0.1mm
• No. 2 - Length 1mm, divisions 0.05mm. Length 20mm, divisions 0.1mm
• No. 8 - Length 20mm, divisions 0.1mm
