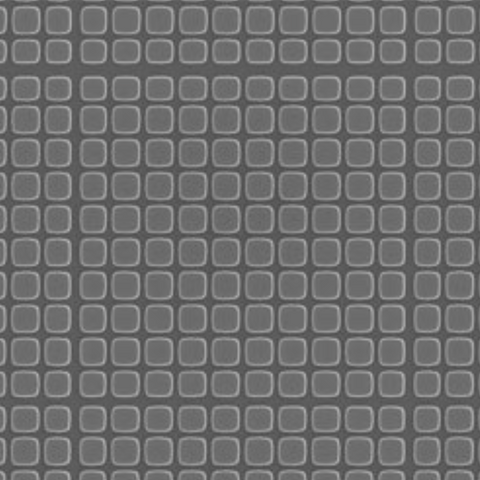

Pelcotec SEM magnification calibration standard, G-1 silicon

The Pelcotec G-1 calibration specimen with a 1µm pitch grid is very useful for magnification calibration or image distortion check in the 100x to 10,000x magnification range. Can be used for SEM, Auger, Sims, FIB, and LM (reflected light). Specimen may also be mounted directly on the Pelcotec G-1 which will give an accurate internal calibration in the image. Particularly useful when working with powders. Possible alternative for the SIRA calbration specimen (0.462µm pitch) which is no longer available.The Pelcotec G-1 has the following specifications:Total calibration area is 3x3mm with a 1µm pitch gridLines at 10um and 100um are thicker for easy orientationIncludes 1µm, 10µm and 100µm pitch300nm ±30nm deep line etched in ultraflat SiLine width is 200nm at 1µm, 300nm at 10µm and 400nm at 100µm pitch linesPrecision is 1µm ±0.025µm with a perpendicularity better than 0.01°Serial number etched on each P...

The Pelcotec G-1 calibration specimen with a 1µm pitch grid is very useful for magnification calibration or image distortion check in the 100x to 10,000x magnification range. Can be used for SEM, Auger, Sims, FIB, and LM (reflected light). Specimen may also be mounted directly on the Pelcotec G-1 which will give an accurate internal calibration in the image. Particularly useful when working with powders. Possible alternative for the SIRA calbration specimen (0.462µm pitch) which is no longer available.

The Pelcotec G-1 has the following specifications:

  • Total calibration area is 3x3mm with a 1µm pitch grid
  • Lines at 10um and 100um are thicker for easy orientation
  • Includes 1µm, 10µm and 100µm pitch
  • 300nm ±30nm deep line etched in ultraflat Si
  • Line width is 200nm at 1µm, 300nm at 10µm and 400nm at 100µm pitch lines
  • Precision is 1µm ±0.025µm with a perpendicularity better than 0.01°
  • Serial number etched on each Pelcotec G-1 calibration standard
  • NIST traceable version is Pelcotec G-1T
  • Individually fully certified version is Pelcotec G-1C
  • Si die size is 4x4mm with a thickness of 525µm ±20µm, <100> orientation
  • Boron doped silicon wafer with a resistivity of 5-10 Ohm/cm
  • Available unmounted or mounted on SEM specimen mounts

To avoid contamination of test and calibration samples, we recommend storing these under vacuum.

PEL633-1: G-1T, 1µm grid, traceable, unmounted

Code Title Pack Size Availability Price Updated: 23-07-2024
PEL633-1 Pelcotec SEM magnification calibration standard, G-1 silicon Each 3 weeks $185.00 AUD
