SEM forensic field sampler specimen mounts, pin mount

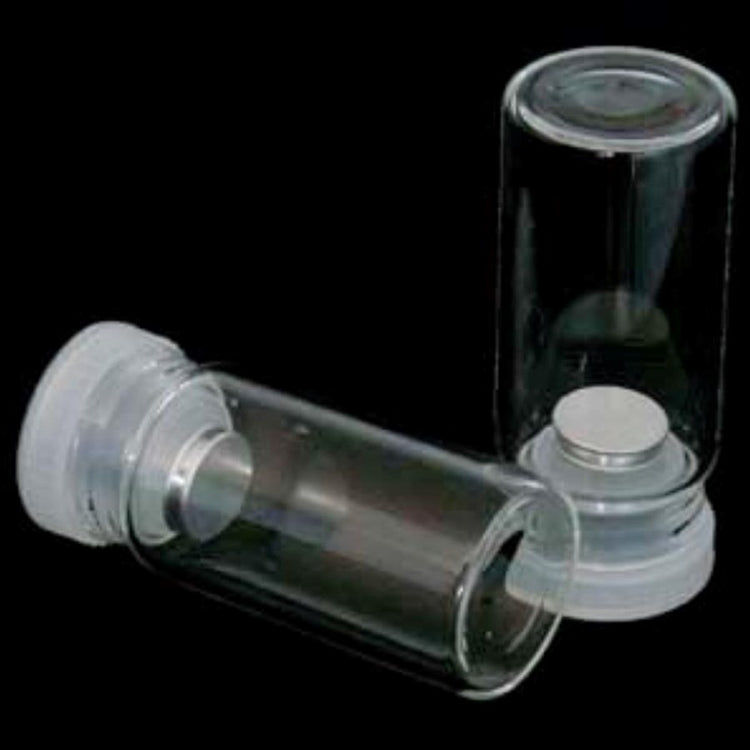

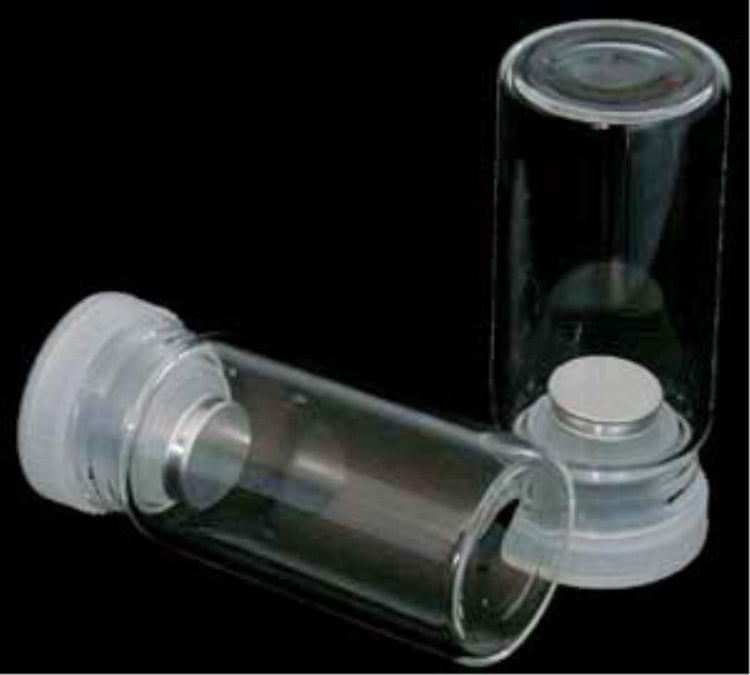

A high purity certified 12.7mm SEM pin stub specimen mount (see 16253, below) with and without an adhesive carbon conductive tab, mounted into the plastic cap of a glass specimen vial (25mm OD x 55mm high). The Forensic Field Sampler has been designed to collect forensic evidence with minimum interference and/or contamination coming from the sampler. Comes in 3 versions: without adhesive carbon tab, with adhesive carbon tab ready to use, and covered carbon tab (plastic cover needs to be removed prior to use). Available with standard 12.7mm SEM pin mount with 8mm pin or short 12.7mm SEM pin mount with 6mm pin (ZEISS/LEO)
Applications for SEM or light microscopy investigation:
- Gunshot residue (GSR)
- Fiber collection
- Particle sampling
- Glass fragments
- Paint chips
- Powder samples
Ideally suited for SEM specimen preparation on the most commonly used SEM pin stub, facilitating easy carbon coating for SEM/EDX investigation.
The Forensic Field Sampler can be safely stored in the glass specimen vial and can be easily shipped since the cap holds the sampler stub in place. Evidence material is held by the adhesive carbon tab.
Code | Title | Size | Tab | Pack Size | Availability | Price | Updated: 04-12-2024 |
---|---|---|---|---|---|---|---|
G040GS | SEM forensic field sampler specimen mounts, pin mount | 12.7mm dia. x 8mm | No carbon tab | Pack/100 | 3 weeks | $464.00 AUD | |
GTP16255 | SEM forensic field sampler specimen mounts, pin mount | 12.7mm dia. x 8mm | Carbon tab | Pack/100 | 3 weeks | $592.00 AUD | |
GTP16255-C | SEM forensic field sampler specimen mounts, pin mount | 12.7mm dia. x 8mm | Carbon tab and cover | Pack/100 | 3 weeks | $592.00 AUD | |
GTP16250-9 | SEM forensic field sampler specimen mounts, pin mount | 12.7mm dia. x 6mm | No carbon tab | Pack/100 | 3 weeks | $523.00 AUD | |
GTP16255-9 | SEM forensic field sampler specimen mounts, pin mount | 12.7mm dia. x 6mm | Carbon tab | Pack/100 | 3 weeks | $616.00 AUD | |
GTP16255-C-9 | SEM forensic field sampler specimen mounts, pin mount | 12.7mm dia. x 6mm | Carbon tab and cover | Pack/100 | 3 weeks | $616.00 AUD |
* Availability Explanation
X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
In Stock – Plenty of stock on the shelf, ready to ship.
No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
