SEM multi specimen pin mount holders, M4 cylinder

The SEM multi specimen mount holders can hold 3.2mm diameter pin stubs and has a M4 threaded base. Made of aluminium with stainless steel hex key screws. Hex key included. Screw used is 6-32 x 1/8 hex set, stainless steel. Compatible with all Hitachi stage adapters using M4 thread, for use with Hitachi TM1000/TM3000 tabletop SEMs.

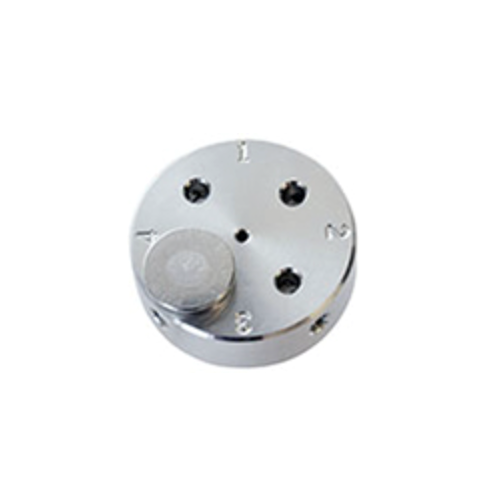

PEL15310-4

  • 31.8mm diameter x 11.25mm
  • Can hold up to four 12.7mm pin stubs

PEL15411

  • 42mm diameter x 10.7mm
  • Can hold up to six 12.7mm pin stubs or up to three 25.4mm pin stubs

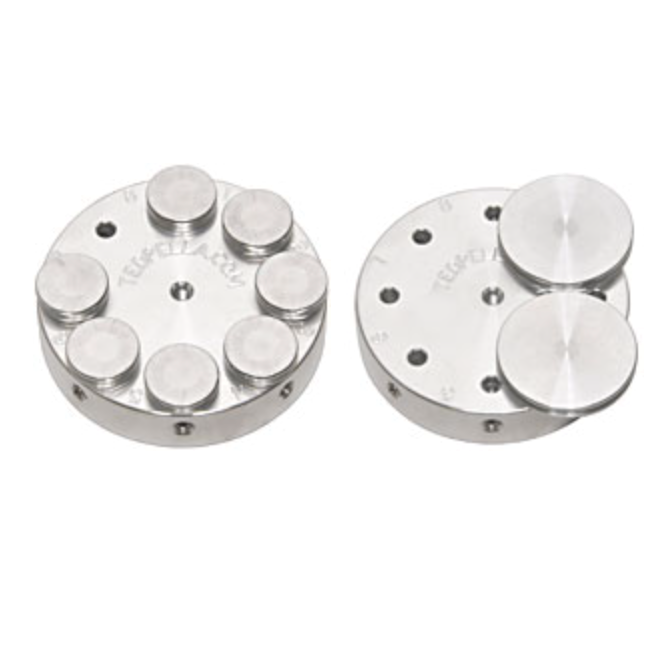

PEL15413

  • 50mm diameter x 10.7mm
  • Can hold up to eight 12.7mm pin stubs or up to four 25.4mm pin stubs

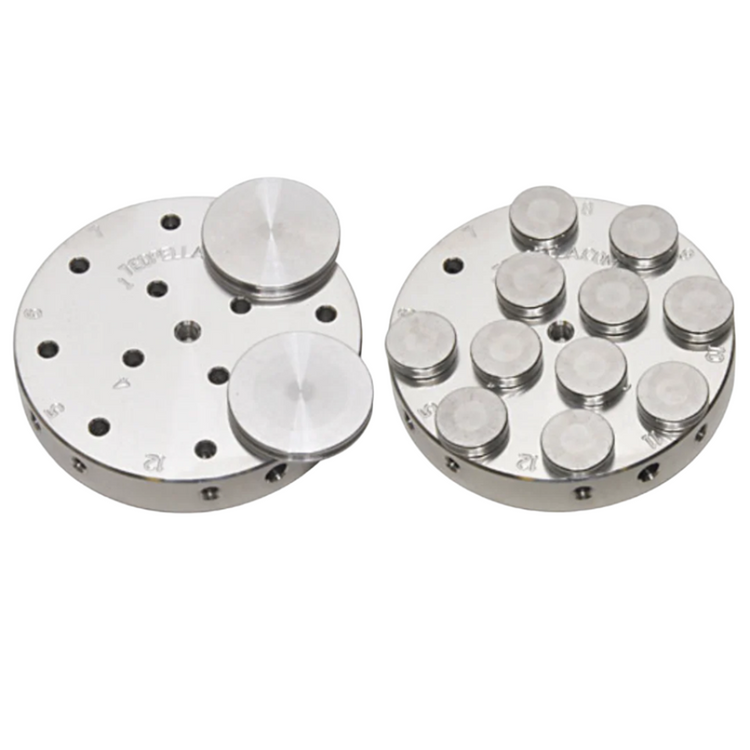

PEL15417

  • 62mm diameter x 10.7mm
  • Can hold up to twelve 12.7mm pin stubs or up to four 25.4mm pin stubs


Code Title Size Pack Size Availability Price Updated: 14-07-2024
GTP15413 SEM multi specimen pin mount holders, M4 cylinder 50mm dia. x 10.7mm Each 3 weeks $207.00 AUD
GTP15417 SEM multi specimen pin mount holders, M4 cylinder 62mm dia. x 10.7mm Each 3 weeks $229.00 AUD
GTP15411 SEM multi specimen pin mount holders, M4 cylinder 42mm dia. x 10.7mm Each 3 weeks $176.00 AUD
GTP15310-4 SEM multi specimen pin mount holders, M4 cylinder 31.8mm dia. x 11.25mm Each 3 weeks $119.00 AUD
