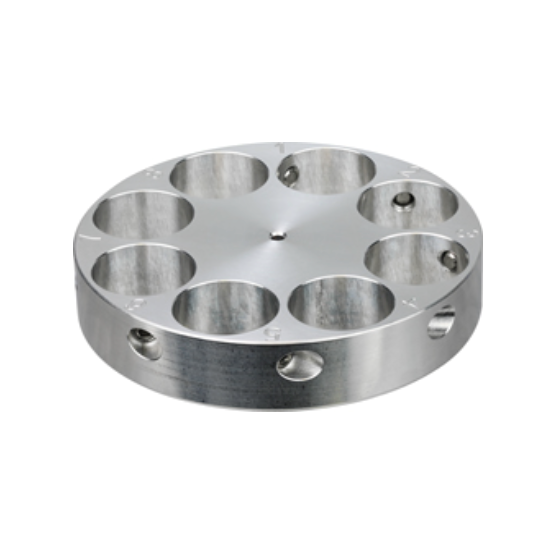

SEM multi cylinder mount holders, pin mount

These SEM multi cylinder mount holders can hold Ø9.5mm or Ø12.2-12.5mm diameter cylinder mounts for use with SEMs that use a 3.2mm pin stub mount. Made from machined aluminium with stainless steel hex key screws, hex key included. Compatible with FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC) SEMs.

Removable pin is 9.5mm length x 3.2mm diameter

Size:

GTP15315 - Ø31.5 x 11.5mm, can hold up to 5 x Ø9.5mm mounts
GTP15515 - Ø50.5 x 10mm (without pin), can hold up to 8 x Ø12.2-12.5mm mounts
Screw used is 6-32 x 1/8, Hex Set, SS

Please choose carefully. Returns of this item are subject to approval.

Updated: 03-07-2025

Code	Diameter	Pack Size	Availability	Price	Updated: 03-07-2025
GTP15315	31.5mm	Each	0 in stock (?)	$154.00 AUD	Image Close
GTP15515	50.5mm	Each	0 in stock (?)	P.O.R.	Quote Image Close

* Ordering Schedule

This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 3 weeks.

This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
