SEM multi extra small pin mount holders, pin mount
The 25mm diameter can accommodate up to seven Extra Small Pin Stubs, and the larger 32mm diameter holder can accommodate up to twelve. Ideal for desktop SEMs, where holder size can be limited, to enable loading more samples at once. Made from machined aluminium with stainless steel hex set screws. Hex key included.
Both holders have standard Ø3.1mm pin base with a length of 9.5mm.
Sizes:

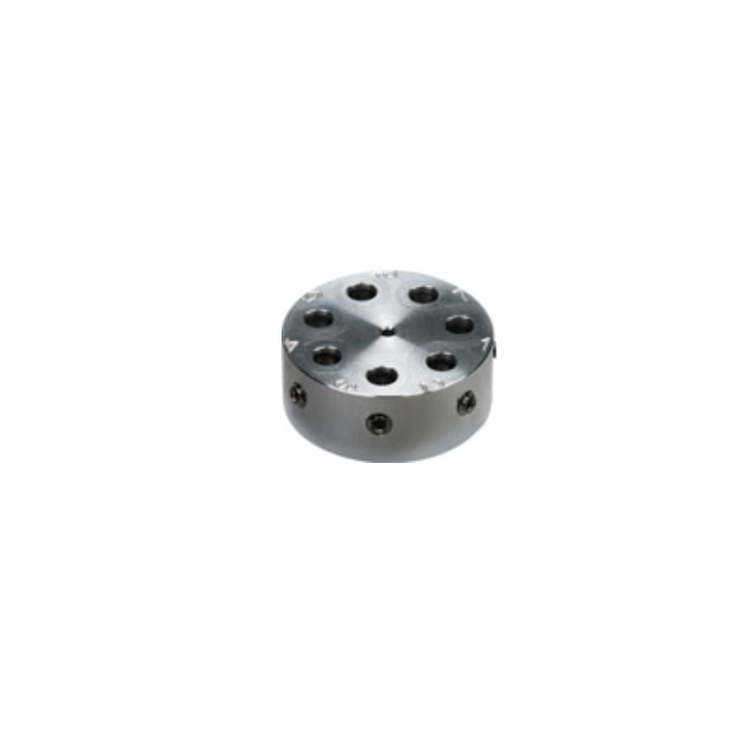

- GTP16146-25P - Capacity for 7 extra small head pin stubs, Ø25 x 10mm without pin
- GTP16146-32P - Capacity for 12 extra small head pin stubs, Ø32 x 10mm without pin
- Screw used is 4-40 x 3/32" Hex Set, SS
Shown with and without Pin Stubs GTP16146 Extra Small Head Ø7mm, pin 8mm length x 3.2mm diameter. Available separately.
