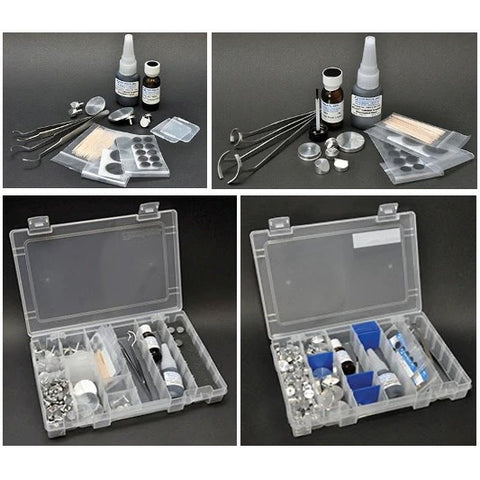

PELCO SEM mount starter kits with storage box

PELCO SEM mount starter kits with storage box are for JEOL, Hitachi, Thermo Fisher/FEI/Tescan and ZEISS/LEO. They contain various popular SEM mounts, conductive silver and carbon paint, conductive carbon tabs and mount gripper tools in a kit storage box. Details of the kit components are below. All PELCO SEM mount starter kits contain these consumables:EMS12630 - Conductive colloidal silver paint (DG) x 1 each                 - Conductive carbon paint/cement (DG) x 1 eachPEL16084-1 - ⌀12mm Conductive carbon tabs x 50 tabsPEL16084-2 - ⌀25mm Conductive carbon tabs x 6 tabsPEL11620 - Wooden picks x 10 eachGTP76270-30 PELCO SEM mount starter kit, cylinder mount (for use with JEOL). Storage box contains consumables and these specific mounts and tools:GTP16231 - ⌀12.2 x 10mm cylinder mount x 100 eachPEL16153 - ⌀25 x 10mm cylinder mou...

PELCO SEM mount starter kits with storage box are for JEOL, Hitachi, Thermo Fisher/FEI/Tescan and ZEISS/LEO. They contain various popular SEM mounts, conductive silver and carbon paint, conductive carbon tabs and mount gripper tools in a kit storage box. Details of the kit components are below.

All PELCO SEM mount starter kits contain these consumables:

  • EMS12630 - Conductive colloidal silver paint (DG) x 1 each
  •                  - Conductive carbon paint/cement (DG) x 1 each
  • PEL16084-1 - ⌀12mm Conductive carbon tabs x 50 tabs
  • PEL16084-2 - ⌀25mm Conductive carbon tabs x 6 tabs
  • PEL11620 - Wooden picks x 10 each

GTP76270-30 PELCO SEM mount starter kit, cylinder mount (for use with JEOL). Storage box contains consumables and these specific mounts and tools:

  • GTP16231 - ⌀12.2 x 10mm cylinder mount x 100 each
  • PEL16153 - ⌀25 x 10mm cylinder mount x 10 each
  • GTP16216 - ⌀32 x 10mm cylinder mount x 5 each
  • GTP16359 - ⌀25 x 16mm 45°/90° cylinder mount x 2 each
  • PEL16105 - ⌀10 x 10mm 45° cylinder mount x 2 each
  • T086-12 - SEM cylinder mount gripper, 12.2mm x 1 each
  • T086-25 - SEM cylinder mount gripper, 25mm x 1 each

GTP76270-40 PELCO SEM mount starter kit, M4 threaded cylinder mount (for use with Hitachi). Storage box contains consumables and these specific mounts and tools:

  • GTP16324 - ⌀15 x 6mm M4 mount x 100 each
  • GTP16327 - ⌀25 x 6mm M4 mount x 10 each
  • GTP16325 - ⌀32 x 6mm M4 mount x 5 each
  • GTP16334 - ⌀15 x 10mm 45°/90° M4 mount x 2 each
  • G050 - ⌀15 x 10mm 45° M4 mount x 2 each
  • T086-15 - SEM cylinder mount gripper, 15mm x 1 each
  • T086-25 - SEM cylinder mount gripper, 25mm x 1 each

GTP76250-10 PELCO SEM mount starter kit, 3.2mm diameter pin mount (for use with Thermo Fisher/FEI/Tescan). Storage box contains consumables and these specific mounts and tools:

  • GTP16111 - ⌀12.7mm x 8mm pin stub x 100 each
  • GTP16119-1 - ⌀18mm x 8mm pin stub x 10 each
  • GTP16144 - ⌀25.4mm x 9.5mm pin stub x 10 each
  • GTP16148 - ⌀32mm x 9.5mm pin stub x 5 each
  • GTP16112 - ⌀38mm x 8mm pin sub x 4 each
  • GTP16102 - ⌀12.7mm x 9.5mm 45° pin stub mount x 2 each
  • G038-12 - ⌀12.7mm x 9.5mm 45°/90° pin stub mount x 2 each
  • T082-12 - SEM Pin mount gripper, 12.7mm x 1 each
  • T082-25 - SEM Pin mount gripper, 25.4mm x 1 each

GTP76260-20 PELCO SEM mount starter kit, 3.2mm diameter pin mount (for use with ZEISS/LEO). Storage box contains consumables and these specific mounts and tools:

  • GTP16111-9 - ⌀12.7mm x 6mm pin stub x 100 each
  • GTP16119-9 - ⌀18mm x 6mm pin stub x 10 each
  • PEL16144-9 - ⌀25.4mm x 6mm pin stub x 10 each
  • GTP16148-9 - ⌀32mm x 6mm pin stub x 5 each
  • GTP16112-9 - ⌀38mm x 6mm pin sub x 4 each
  • GTP16102-9 - ⌀12.7mm x 6mm 45° pin stub mount x 2 each
  • PEL16104-9 - ⌀12.7mm x 6mm 45°/90° pin stub mount x 2 each
  • T082-12 - SEM Pin mount gripper, 12.7mm x 1 each
  • T082-25 - SEM Pin mount gripper, 25.4mm x 1 each
Code Title Style Pack Size Availability Price Updated: 12-07-2024
GTP76250-10 PELCO SEM mount starter kits with storage box 9mm pin Kit 3 weeks $390.00 AUD
GTP76260-20 PELCO SEM mount starter kits with storage box 6mm pin Kit 3 weeks $427.00 AUD
GTP76270-30 PELCO SEM mount starter kits with storage box Cylinder Kit 3 weeks $500.00 AUD
GTP76280-40 PELCO SEM mount starter kits with storage box M4 Kit 3 weeks $510.00 AUD
