SEM multi extra small pin mount holders, M4 cylinder

The 25mm diameter holder can accommodate up to 7 Extra Small Pin Stubs, and the larger 32mm diameter holder can accommodate up to twelve. Ideal for desktop SEMs, where holder size can be limited, to enable loading more samples at once. Made from machined aluminium with stainless steel hex set screws. Hex key included.

Sizes:

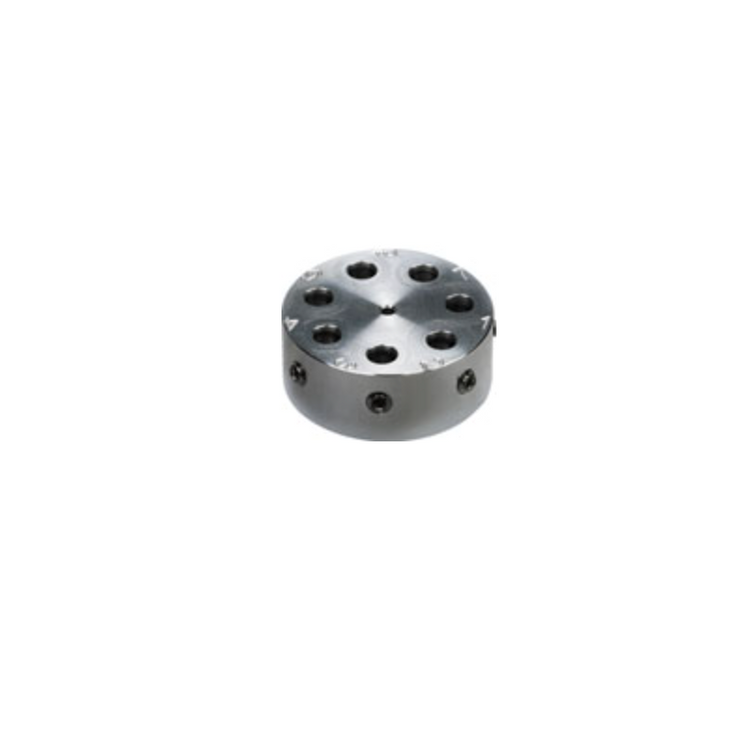

  • GTP16146-25 - Capacity for 7 extra small head pin stubs, Ø25 x 10mm

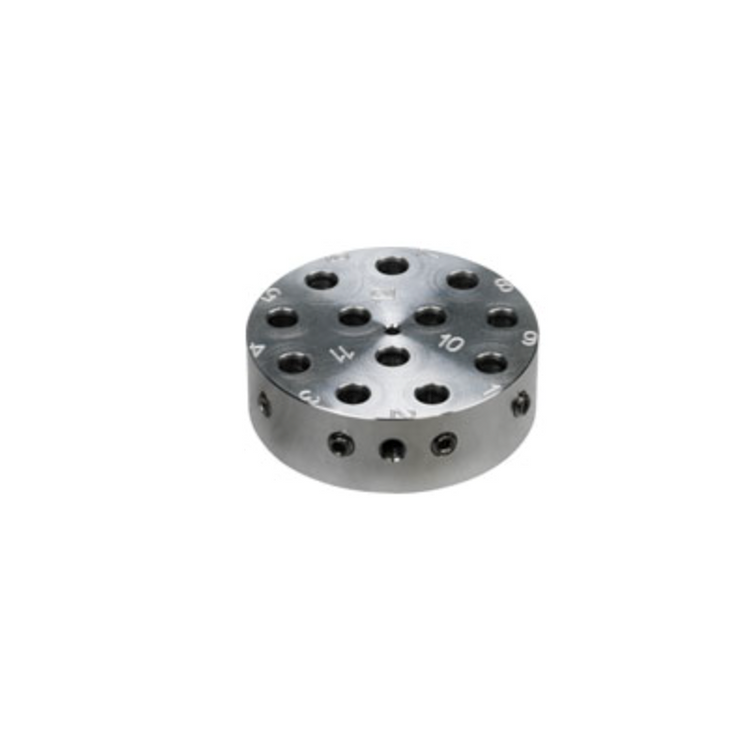

  • GTP16146-32 - Capacity for 12 extra small head pin stubs, Ø32 x 10mm
  • Screw used is 4-40 x 3/32" Hex Set, SS

Shown with and without Pin Stubs GTP16146 Extra Small Head Ø7mm, pin 8mm length x 3.2mm diameter. Available separately.

Updated: 08-06-2025
Code Type Pack Size Availability Price Updated: 08-06-2025
GTP16146-25 7 pin stubs Each 3 weeks P.O.R. Quote
Close
GTP16146-32 12 pin stubs Each 3 weeks P.O.R. Quote
Close
