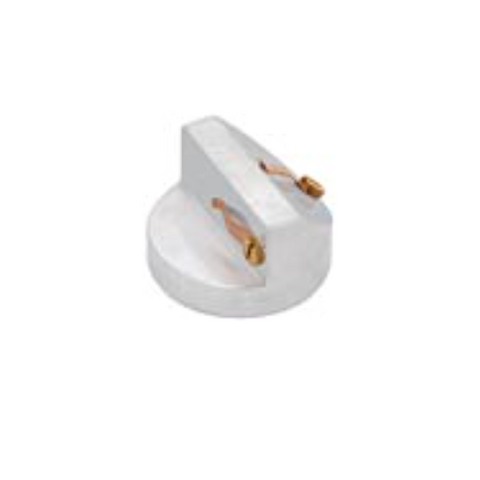

PELCO SEMClip 45/90 deg. specimen mounts, JEOL cylinder

These PELCO SEMClip specimen cylinder mounts are designed for easy, quick and clean mounting of specimens for use with JEOL SEMs. The spring-loaded clips hold the sample securely and can accommodate samples with a thickness up to 2mm. No adhesives required and ideal to hold silicon chips, paper, wire, threads, thin films, sheet metal, etc.

Specifications:

  • 25mm diameter x 16mm and 32mm diameter x 12mm
  • 45/90° mount for cross section examination of specimen
  • 2 clips (1 clip per specimen)
  • JEOL cylinder mount, allen key screw
Code Title Size Clips Pack Size Availability Price Updated: 23-07-2024
GTP16359-20 PELCO SEMClip 45/90 deg. specimen mounts, JEOL cylinder 25mm dia. x 16mm 2 Each 3 weeks $88.00 AUD
GTP16379-20 PELCO SEMClip 45/90 deg. specimen mounts, JEOL cylinder 32mm dia.x 12mm 2 Each 3 weeks $98.00 AUD
