PELCO SEMClip 90 deg. specimen block mounts, pin mount

These PELCO SEMClip specimen block pin mounts are designed for easy, quick and clean mounting of specimens for use with all SEMs using pin stubs (FEI/Philips, ZEISS/LEO, Cambridge, Leica, Amray, CamScan and Tescan). The spring-loaded clips hold the sample securely and can accommodate samples with a thickness up to 2mm. No adhesives required and ideal to hold silicon chips, paper, wire, threads, thin films, sheet metal, etc.

Specifications:

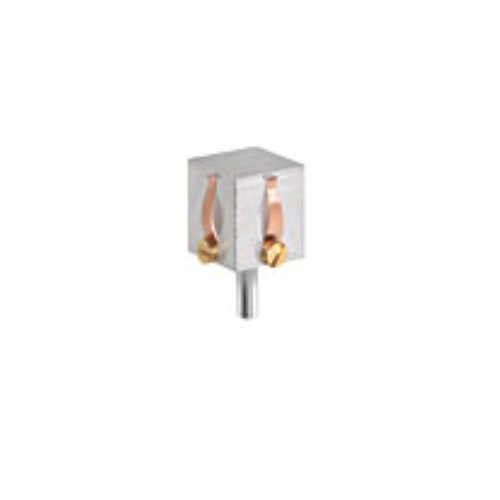

12mm W x 12mm L x 14mm H, 4 clips

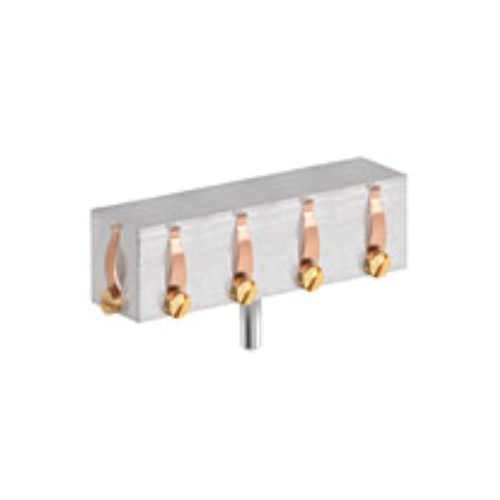

12mm W x 48mm L x 14mm H, 10 clips
90° mount for cross section examination of specimen
3.2mm diameter pin stub mount

Please choose carefully. Returns of this item are subject to approval.

Updated: 25-08-2025

Code	Size	Clips	Pack Size	Availability	Price	Updated: 25-08-2025
GTP16141	12 x 12 x 14mm	4	Each	0 in stock (?)	$149.00 AUD	Image Close
GTP16147	12 x 48 x 14mm	10	Each	0 in stock (?)	$350.00 AUD	Image Close

* Ordering Schedule

This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 3 weeks.

This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
