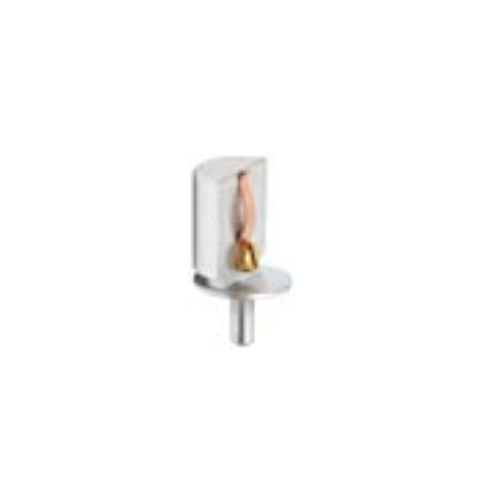

PELCO SEMClip 90 deg. specimen mount, pin mount

These PELCO SEMClip specimen pin mounts are designed for easy, quick and clean mounting of specimens for use with all SEMs using pin stubs (FEI/Philips, ZEISS/LEO, Cambridge, Leica, Amray, CamScan and Tescan). The spring-loaded clips hold the sample securely and can accommodate samples with a thickness up to 2mm. No adhesives required and ideal to hold silicon chips, paper, wire, threads, thin films, sheet metal, etc.

Specifications:

  • 12.5mm diameter x 8mm
  • 90° mount for cross section examination of specimen
  • 1 clip
  • 3.2mm diameter pin stub mount
Code Title Size Clips Pack Size Availability Price Updated: 23-07-2024
GTP16143 PELCO SEMClip 90 deg. specimen mount, pin mount 12.5mm dia. x 8mm 1 Each 3 weeks $92.00 AUD
