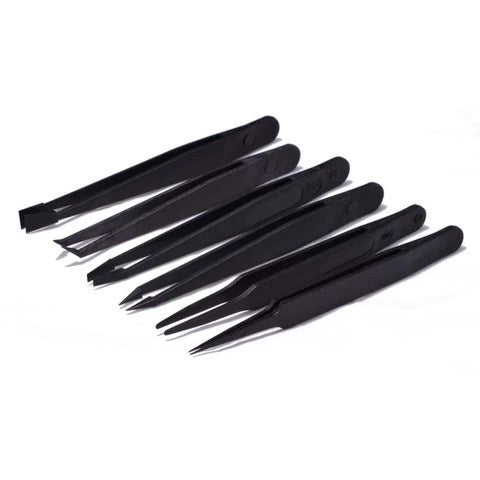

PELCO ESD safe carbon fibre tweezers
These high performance precision, conductive, ESD safe, PELCO SV carbon fibre reinforced tweezers are ideal for forensic, electronic and sample preparation applications where handling of scratch-sensitive material or samples is required. The soft touch surface avoids cutting or damaging hairs, fibres, paper, bullets and rounds. Compatible for clean room applications and suitable for chemical processing. Light weight, strong and sturdy material. Also ideal for magnetic applications, since the material will not be magnetised.
The tweezers are made of carbon fibre reinforced PVDF (polyvinylidene fluoride) and have the following features:
- Smooth surface paired to high mechanical strength and toughness
- Anti-static, ESD safe material
- Electric conductor, high resistance
- Heat stabilised, continuous use with temperatures ranging from -40 to 150C
- High purity - clean room compatible
- High abrasion resistance
- Excellent chemical resistance to most acids and solvents
- Resists HF (40% - 90C); HNO3 (50% - 90C); HCL (36% - 90C)
- Resistant to UV and X-ray radiation
Typical applications:
- Handling of scratch sensitive samples
- Cleaning and etching processes
- Handling of static and/or static-sensitive components
- Handling of soft specimens
- Handling of magnetic specimens
Available:
| Code | Description | Length | Material | Points Width x Thickness |
|---|---|---|---|---|
|
TTP5412 TTP5104 |
Sharp tips | 115mm | carbon fibre reinforced PVDF or Polyamide 66 |
0.25 x 0.12mm |
| Style 707 |  |
|||
|
TTP5415 TTP5107 |
Sharp tips | 115mm |
carbon fibre reinforced PVDF or Polyamide 66 |
0.25 x 0.12mm |
| Style 708 |  |
|||
|
TTP5411 TTP5103 |
Sharp tips | 115mm | carbon fibre reinforced PVDF or Polyamide 66 |
0.25 x 0.12mm |
| Style 705 |
 |
|||
|
TTP5417 TTP5108 |
sharp, curved tips | 115mm | carbon fibre reinforced PVDF or Polyamide 66 |
0.17 x 0.2mm |
| Style 707A |  |
|||
|
TTP5413 TTP5105 |
Flat tips | 115mm | carbon fibre reinforced PVDF or Polyamide 66 |
3.50 x 0.12mm |
| Style 709 |  |
|||
|
TTP5414 TTP5106 |
Flat tips | 115mm | carbon fibre reinforced PVDF or Polyamide 66 |
8.0 x 0.12mm |
| Style 710 |  |
|||
|
TTP5410 TTP5102 |
Flat tips | 115mm | carbon fibre reinforced PVDF or Polyamide 66 |
2.0 x 0.12mm |
| Style 702A |  |
|||
Tweezer sets available:
| Code | Description | Material |
|---|---|---|
| TTP5418-5 | Set of 5 Tweezers in clear plastic pouch. Contains: TTP5410, TTP5412, TTP5415, TTP5413 and TTP5414 |
PVDF |
| TTP5109 | Set of 5 Tweezers in clear plastic pouch. Contains: TTP5102, TTP5104, TTP5107, TTP5105 and TTP5106 |
Polyamide 66 |
|
TTP5419-6 |
Set of 6 Tweezers in clear plastic pouch. Contains: TTP5410, TTP5411, TTP5412, TTP5415, TTP5413 and TTP5414 |
PVDF |
|
TTP5110 |
Set of 6 Tweezers in clear plastic pouch. Contains: TTP102, TTP5103, TTP5104, TTP5107, TTP5105 and TTP510 |
Polyamide 66 |
| Code | Title | Style | Material | Pack Size | Availability | Price | Updated: 26-12-2024 |
|---|---|---|---|---|---|---|---|
| TTP5410 | PELCO ESD safe carbon fibre tweezers | 702A, flat tips | PVDF | Each | 2 in stock | $23.00 AUD | |
| TTP5102 | PELCO ESD safe carbon fibre tweezers | 702A, flat tips | PM | Each | 3 weeks | $23.00 AUD | |
| TTP5411 | PELCO ESD safe carbon fibre tweezers | 705, sharp tips | PVDF | Each | 1 in stock | $25.00 AUD | |
| TTP5103 | PELCO ESD safe carbon fibre tweezers | 705, sharp tips | PM | Each | 3 weeks | $23.00 AUD | |
| TTP5412 | PELCO ESD safe carbon fibre tweezers | 707, sharp tips | PVDF | Each | 8 in stock | $25.00 AUD | |
| TTP5104 | PELCO ESD safe carbon fibre tweezers | 707, sharp tips | PM | Each | 3 weeks | $23.00 AUD | |
| TTP5417 | PELCO ESD safe carbon fibre tweezers | 707A, curved sharp tips | PVDF | Each | 2 in stock | $25.00 AUD | |
| TTP5108 | PELCO ESD safe carbon fibre tweezers | 707A, curved sharp tips | PM | Each | 3 weeks | $23.00 AUD | |
| TTP5415 | PELCO ESD safe carbon fibre tweezers | 708, sharp tips | PVDF | Each | 3 weeks | $25.00 AUD | |
| TTP5107 | PELCO ESD safe carbon fibre tweezers | 708, sharp tips | PM | Each | 3 weeks | $23.00 AUD | |
| TTP5413 | PELCO ESD safe carbon fibre tweezers | 709, flat tips | PVDF | Each | 3 weeks | $23.00 AUD | |
| TTP5105 | PELCO ESD safe carbon fibre tweezers | 709, flat tips | PM | Each | 3 weeks | $23.00 AUD | |
| TTP5414 | PELCO ESD safe carbon fibre tweezers | 710, flat tips | PVDF | Each | 8 in stock | $23.00 AUD | |
| TTP5106 | PELCO ESD safe carbon fibre tweezers | 710, flat tips | PM | Each | 3 weeks | $23.00 AUD | |
| TTP5418-5 | PELCO ESD safe carbon fibre tweezers | Tweezer set | PVDF | Pack/5 | 1 in stock | $85.00 AUD | |
| TTP5109 | PELCO ESD safe carbon fibre tweezers | Tweezer set | PM | Pack/5 | 3 weeks | $47.00 AUD | |
| TTP5419-6 | PELCO ESD safe carbon fibre tweezers | Tweezer set | PVDF | Pack/6 | 1 in stock | $107.00 AUD | |
| TTP5110 | PELCO ESD safe carbon fibre tweezers | Tweezer set | PM | Pack/6 | 3 weeks | $57.00 AUD |
* Availability Explanation
X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
In Stock – Plenty of stock on the shelf, ready to ship.
No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
