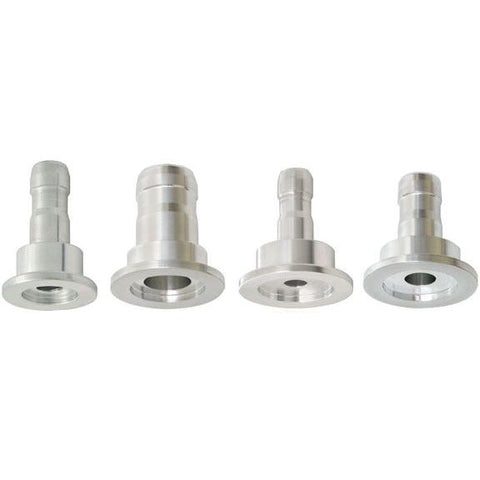

NW/KF hose adapters (weld flange), aluminium

The NW/KF hose adapters and made solid bar aluminium, no welds. These hose adapters have several names flat flanges, terminal pad, half nipple, weld flange, tubulations, and flange coupling.Specifications:ProductAdapter SizeDimensionsNW/KF16VTP92410-16389.53mmA=12mm...

The NW/KF hose adapters and made solid bar aluminium, no welds. These hose adapters have several names flat flanges, terminal pad, half nipple, weld flange, tubulations, and flange coupling.

Specifications:

Product Adapter Size Dimensions

NW/KF16
VTP92410-1638
9.53mm
A=12mm, B=44mm
VTP92410-1650
12.7mm or 15.88mm
A=16mm, B=42mm
VTP92410-1675
15.88mm or 19mm
A=19mm, B=42mm

NW/KF25
VTP92410-2538
9.53mm
A=12mm, B=44mm
VTP92410-2550
12.7mm or 15.88mm
A=16mm, B=42mm
VTP92410-2575
15.88mm or 19mm
A=19mm, B=42mm
VTP92410-2500
19mm or 22.23mm
A=22.5mm, B=44mm

NW/KF40
VTP92410-40
38.1mm or 41.28mm
A=41.5mm, B=55mm

NW/KF50
VTP92410-50
38.1mm or 41.28mm
A=41.5mm, B=55mm

Vacuum Flange Types and Sizes

Code Title Size Hose Pack Size Availability Price Updated: 23-07-2024
VTP92410-1638 NW/KF hose adapters (weld flange), aluminium NW/KF16 9.53mm Each 3 weeks $58.00 AUD
VTP92410-1650 NW/KF hose adapters (weld flange), aluminium NW/KF16 12.7mm or 15.88mm Each 3 weeks $49.00 AUD
VTP92410-1675 NW/KF hose adapters (weld flange), aluminium NW/KF16 15.88mm or 19mm Each 3 weeks $49.00 AUD
VTP92410-2538 NW/KF hose adapters (weld flange), aluminium NW/KF25 9.53mm Each 3 weeks $50.00 AUD
VTP92410-2550 NW/KF hose adapters (weld flange), aluminium NW/KF25 12.7mm or 15.88mm Each 3 weeks $57.00 AUD
VTP92410-2575 NW/KF hose adapters (weld flange), aluminium NW/KF25 15.88mm or 19.05mm Each 3 weeks $62.00 AUD
VTP92410-2500 NW/KF hose adapters (weld flange), aluminium NW/KF25 19mm or 22.23mm Each 3 weeks $49.00 AUD
VTP92410-40 NW/KF hose adapters (weld flange), aluminium NW/KF40 38.1mm or 41.28mm Each 3 weeks $60.00 AUD
VTP92410-50 NW/KF hose adapters (weld flange), aluminium NW/KF50 38.1mm or 41.28mm Each 3 weeks $65.00 AUD
