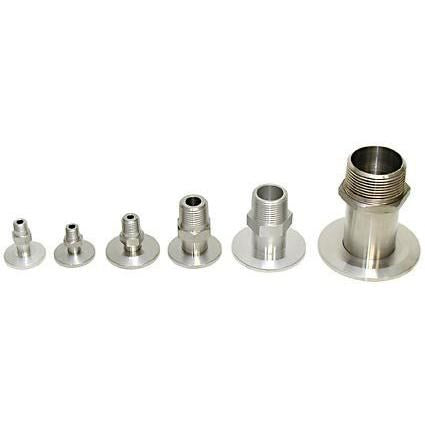

NW/KF flange adapters to male NPT thread, stainless steel

The NW/KF flange adapters to male NPT thread used to connect pipes and systems with NPT thread to NW/KF flange system. These stainless steel adapters are welded and helium leak tested. Use OC Three as a sealant and to prevent seising. Please note that NPT (National Pipe Thread) does not refer to the outside diameter of the thread. Aluminium flange adapter specifications:ProductNPT SizeDimensionsNW/KF16 Adapter...

The NW/KF flange adapters to male NPT thread used to connect pipes and systems with NPT thread to NW/KF flange system. These stainless steel adapters are welded and helium leak tested. Use OC Three as a sealant and to prevent seising. Please note that NPT (National Pipe Thread) does not refer to the outside diameter of the thread.

Aluminium flange adapter specifications:

Product NPT Size Dimensions

NW/KF16 Adapter
VNPTM-KF16-03SS
3.18mm A=26mm
VNPTM-KF16-06SS
6.35mm A=32mm

NW/KF25 Adapter
VNPTM-KF25-03SS
3.18mm A=26mm
VNPTM-KF25-06SS
6.35mm A=32mm
VNPTM-KF25-12SS
12.7mm A=47mm
VNPTM-KF25-19SS
19mm A=51mm

NW/KF40 Adapter
VNPTM-KF40-03SS
3.18mm A=26mm
VNPTM-KF40-06SS
6.35mm A=32mm
VNPTM-KF40-12SS
12.7mm A=47mm
VNPTM-KF40-19SS
19mm A=47mm

NW/KF50 Adapter
VNPTM-KF50-03SS
3.18mm
A=26mm
VNPTM-KF50-06SS
6.35mm A=32mm
VNPTM-KF50-12SS
12.7mm
A=47mm
VNPTM-KF50-19SS
19mm
A=47mm
VNPTM-KF50-25SS
25.4mm A=55mm
VNPTM-KF50-32SS
31.75mm
A=80mm
VNPTM-KF50-38SS
38.1mm
A=80mm

Vacuum Flange Types and Sizes

Code Title Size NPT Pack Size Availability Price Updated: 16-07-2024
VNPTM-KF25-12SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF25 12.7mm Each 3 weeks $147.00 AUD
VNPTM-KF25-19SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF25 19mm Each 3 weeks $233.00 AUD
VNPTM-KF40-03SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF40 3.18mm Each 3 weeks $123.00 AUD
VNPTM-KF40-06SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF40 6.35mm Each 3 weeks $148.00 AUD
VNPTM-KF40-19SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF40 19mm Each 3 weeks $233.00 AUD
VNPTM-KF50-03SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF50 3.18mm Each 3 weeks $133.00 AUD
VNPTM-KF50-06SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF50 6.35mm Each 3 weeks $133.00 AUD
VNPTM-KF50-12SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF50 12.7mm Each 3 weeks $160.00 AUD
VNPTM-KF50-19SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF50 19mm Each 3 weeks $175.00 AUD
VNPTM-KF50-25SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF50 25.4mm Each 3 weeks $221.00 AUD
VNPTM-KF50-32SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF50 31.75mm Each 3 weeks $237.00 AUD
VNPTM-KF50-38SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF50 38.1mm Each 3 weeks $267.00 AUD
VNPTM-KF16-03SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF16 3.18mm Each 3 weeks $133.00 AUD
VNPTM-KF16-06SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF16 6.35mm Each 3 weeks $125.00 AUD
VNPTM-KF25-03SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF25 3.18mm Each 3 weeks $131.00 AUD
VNPTM-KF25-06SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF25 6.35mm Each 3 weeks $140.00 AUD
VNPTM-KF40-12SS NW/KF flange adapters to male NPT thread, stainless steel NW/KF40 12.7mm Each 3 weeks $153.00 AUD
