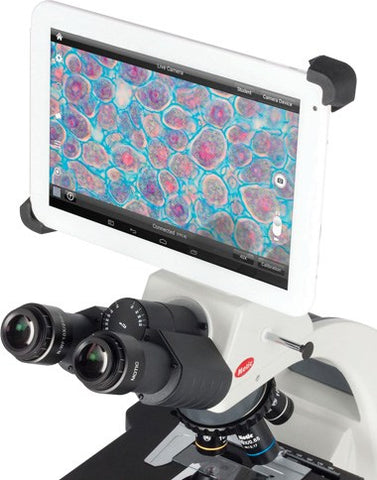

Moticam BTX10 microscope touchscreen tablet
The Moticam BTX10 is a 5.0MP CMOS camera equipped with a 10.1" Android 4.4 tablet. The BTX10 is powered by a 1.66GHz (Quad Core) CPU with built-in DDR3 memory, and also equipped with WiFi (802.11 b/g/n), Bluetooth 3.1, mini HDMI output (1080p), built in MIC and speaker, and Micro SD card slot. C-mount adapter required. Additional software for cameras is available.
Features:
- 10.1" LCD tablet camera
- Attachable digital C-mount camera
- Capacitive Touch Screen
- Sensor: CMOS
- Live resolution: 1280 x 800 pixels (16:10)
- Image capture resolution: 5.0MP
- Video capture resolution: 720p
- Android 4.4 Operating System
- Mini HDMI output
- SD/MMC/TF Card (Support up 32GB)
- Bluetooth 4.0
- Built-in MIC, speaker and earphone jack
- Wi-Fi 802.11b/g/n, Bluetooth 4.0
- MicroSD 4Gb included
- Pre-installed App MotiConnect
- Motic Images Plus 3.0 software for Windows, OSX and Linux
Includes: MicroSD 8GB, HDMI Cable, USB Cable, Motic Images Plus 3.0, Motic 4-dot Calibration Slide, Charger 100V-240V (CE)
Specifications:
| Model | BTX10 |
| Size | 263 x 173 x 9.5mm |
| System | Android 4.4 |
| Pre-installed App | MotiConnect |
| Language | Multi-language |
| CPU | 1.6GHz Quad core (RK3188 1.6GHz) |
| RAM | 1GB DDR3 |
| NAND Flash | 16GB |
| Display | 10.1" (IPS) 16:10 Ratio |
| Display Resolutions | 1280 x 800 (IPS) |
| Touch Panel | Capacitive Multi-Touch Screen |
| GPU | MALI-400 |
| Ports | SD/MMC/TF Card (Support up 32GB) |
| 3.5mm Audio | |
| DC 5V Power Input | |
| Mini HDMI output | |
| Speaker | 8_/1Wx1 |
| MIC | MIC (Internal) |
| Wi-Fi | 802.11b/g/n |
| Bluetooth | 4.0 |
| Gyro Sensor | Gravity acceleration sensor |
| Camera | Front (2M Pixels) |
| Support Display Format | MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, |
| Support Audio Format | MP4, MOV, 3GP), RM, RMVB, FLV, WEBM |
| Picture Format | MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV, JPG, JPEG, BMP, PNG |
| Battery | 3.7V/6000mAh Rechargeable Battery |
| Power Supply | Input: AC100-240V. 50-60HZ |
| Output: DC5V 2A (Support USB port charging) | |
| Certifications | FCC CE MIC |
| Colour | White |
| Package Includes | MicroSD 8GB included, HDMI Cable, USB Cable, Motic Images Plus 3.0, Motic 4-dot calibration slide, Charger 100V-240V (CE) |
| Code | Pack Size | Availability | Price | Updated: 04-06-2026 |
|---|---|---|---|---|
| OTP2295-BTX10 | Each | 0 in stock (?) | $1,782.00 AUD |
* Ordering Schedule
This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 6 weeks.
This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
