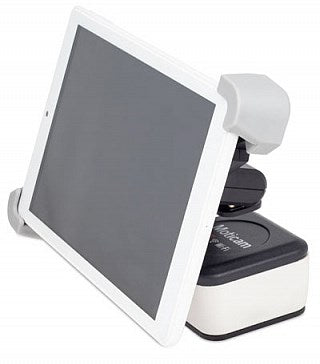

Moticam BTX8 microscope touchscreen tablet
The Moticam BTX8 combines a 4.0MP WiFi CMOS camera with an 8", Android 5.1 tablet. The BTX8 is powered by a 1.3GHz (Quad Core) CPU with built-in 1GB, DDR3 memory. Detaching the tablet for an even more flexible application is possible thanks to the WiFi data transfer. Use the pre-installed MotiConnect App and get ready to capture, edit and share your microscope images from the tablet in a few taps. C-mount adapter required. Additional software for cameras is available.
Specifications:
| Model | BTX8 |
| Size | 209 x 126 x 9.9mm |
| System | Android 5.1 |
| Pre-installed App | MotiConnect |
| Language | Multi-Language |
| CPU | 1.3GHz Quad core |
| RAM | 1GB DDR3 |
| NAND Flash | 16GB |
| Display | 8" (IPS) 16:10 Ratio |
| Display Resolutions | 1280 x 800 (IPS) |
| Touch Panel | Capacitive Multi-Touch Screen |
| GPU | MALI-T720 MP2 |
| Ports | SD/MMC/TF Card (Support up 32 GB) |
| 3.5mm Audio | |
| DC 5V Power Input | |
| Micro HDMI output | |
| Speaker | 8_/0.7Wx2 |
| MIC | MIC (Internal) |
| Wi-Fi | 802.11b/g/n |
| Bluetooth | 4.0 |
| Gyro Sensor | No |
| Camera | Front (2M Pixels) + Rear (2M Pixels) |
| Support Display Format | MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV |
| Support Audio Format | WAV, MP2, MP3, AMR, VORBIS, APE, FLAC |
| Picture Format | JPG, JPEG, BMP, PNG |
| Battery | 3.7V/4000mAh Rechargeable Battery |
| Power Supply | Input: AC100-240V. 50-60HZ |
| Output: DC5V 2A (Support USB port charging) | |
| Certifications | FCC CE MIC |
| Colour | White |
| Package Includes | MicroSD 8GB included, HDMI Cable, USB Cable, Motic Images Plus 3.0 software, Motic 4-dot calibration slide, Charger 100V-240V (CE) |
| Code | Pack Size | Availability | Price | Updated: 04-06-2026 |
|---|---|---|---|---|
| OTP2295-BTX8 | Each | 0 in stock (?) | $1,547.00 AUD |
* Ordering Schedule
This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 6 weeks.
This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
