PELCO Pro surface mount device tweezers, epoxy coated ESD safe

Aimed at handling and positioning Surface Mount Devices and Small Outline Transistors (SOT), these non-magnetic stainless steel precision tweezers have ESD safe black epoxy coated grips for enhanced operator comfort. The ESD safe epoxy coating is comprised of polyester and epoxy resins with electrically conductive additives, providing an ESD safe coating with a surface resistance of 105-106 ohm. The impact resistant, elastic coating can survive operating at temperatures up to 120°C. It also has good resistance to many diluted acids and alkalis.Available:

Available:

Style	Description	Length	Tips (Width x Thickness)

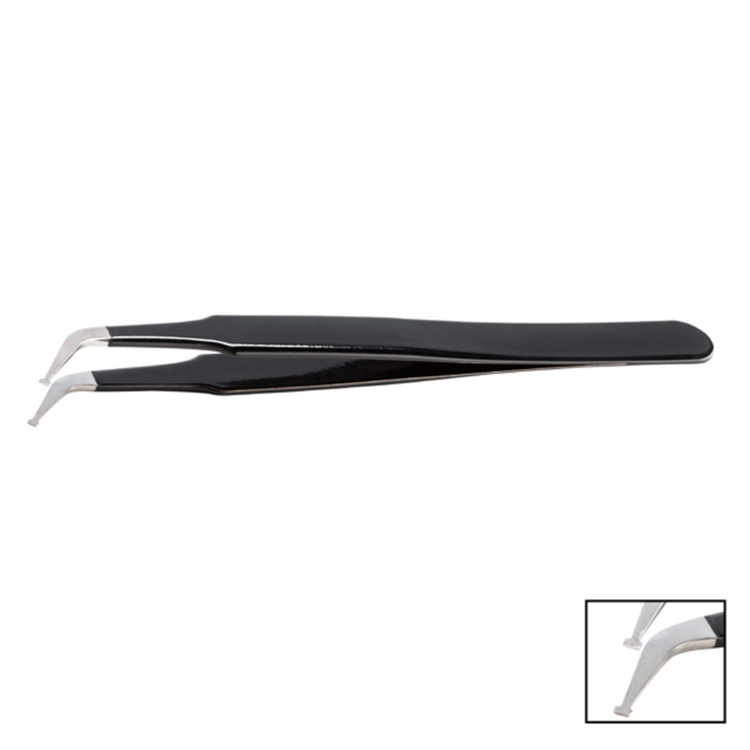

103	45° Bent Tip, handling and positioning 2 and 3 lead SOT surface mount packages at a 45° angle	115mm	1.60 x 0.35mm

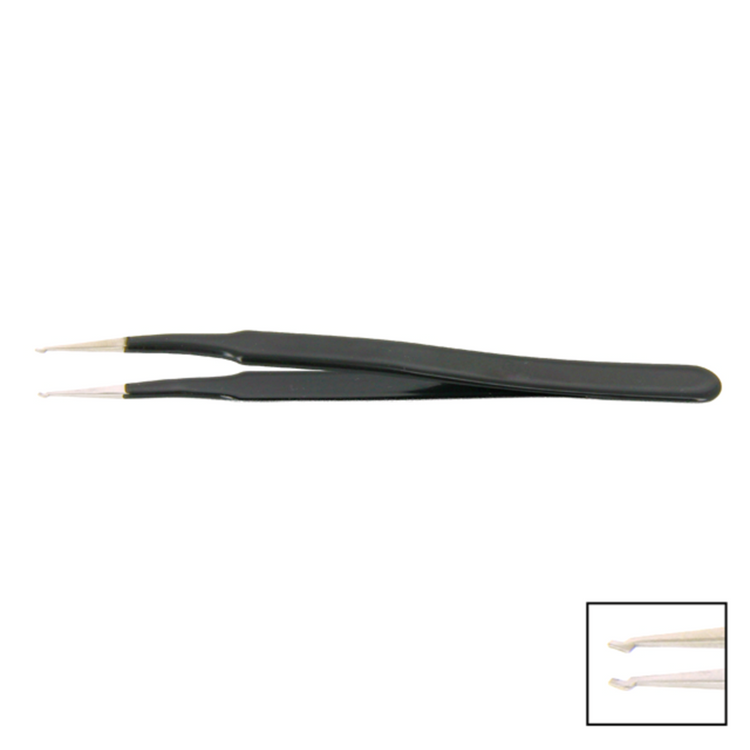

104	Curved Tips, handling and positioning 3 lead SOT packages and monolithic chip capacitors	120mm	1.80 x 0.30mm
109	Straight Tips, intended for 1mm wide components	120mm	1.10 x 0.25mm

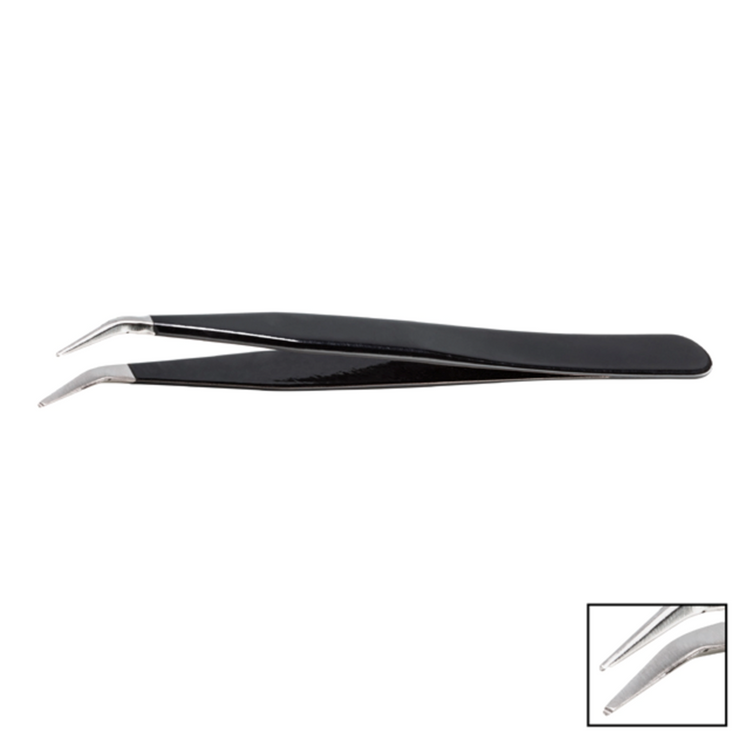

115	30° Bent, Flat Tips, holding and positioning cylindrical devices	115mm	0.85 x 0.60mm

Please choose carefully. Returns of this item are subject to approval.

Updated: 23-06-2026

Code	Style	Material	Pack Size	Availability	Price	Updated: 23-06-2026
TTP5389-1E	103, bent tip	NM-SS/Epoxy coated	Each	0 in stock (?)	P.O.R.	Quote Image Close
TTP5389-2E	104, curved tips	NM-SS/Epoxy coated	Each	0 in stock (?)	P.O.R.	Quote Image Close
TTP5389-8E	109, straight tips	NM-SS/Epoxy coated	Each	0 in stock (?)	P.O.R.	Quote Image Close
TTP5389-11E	115, bent flat tips	NM-SS/Epoxy coated	Each	0 in stock (?)	P.O.R.	Quote Image Close

* Ordering Schedule

This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 3 weeks.

This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
