SEM stage adapter assemblies and parts for FEI/Philips, M6-fine

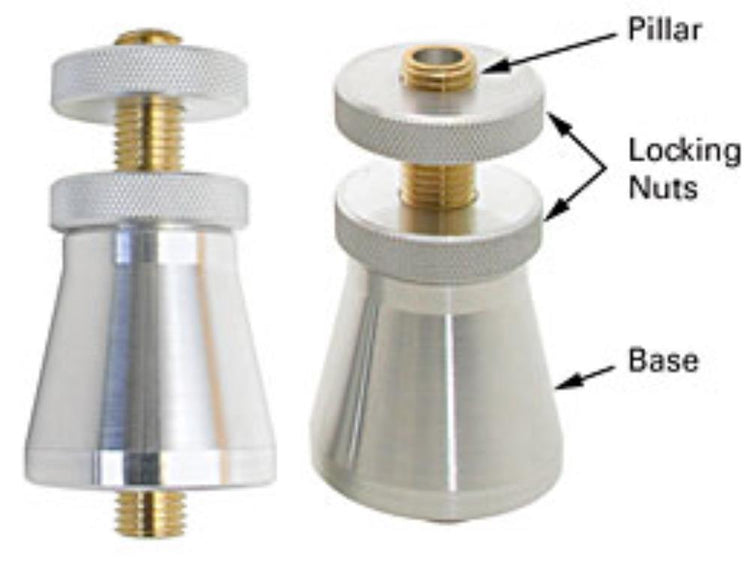

The SEM stage adapter assembly for use with FEI/Philips SEM/FESEM and DualBeam Systems is made from brass and aluminium. The 40mm assembly includes pillar, base and two locking nuts and 20mm assembly includes pillar and two locking nuts. The pillar is made from non-binding brass to enable smooth height adjustment. The base and locking nuts are made from vacuum grade aluminium. The thread on the stage adapter items is M6-fine.
Specifications:
| Product | Description |
| GTP15286 | 40mm height SEM stage adapter for FEI/Philips which includes pillar, base and two locking nuts |
| GTP15287 | 20mm height SEM stage adapter for FEI/Philips which includes short pillar and two locking nuts |
| GTP15286-40 | FEI/Philips stage adapter standard pillar 40mm only |
| GTP15287-20 | FEI/Philips stage adapter short pillar 20mm only |
The SEM stage adapters are similar to the original SEM stage adapters from the SEM manufacturer. They are intended as replacements or additional stage adapters on the specimen holders from the SEM manufacturer.
Also available:
- GTP15368-10 - Stage adapter base
- GTP15368-30 - M6 locking nut
