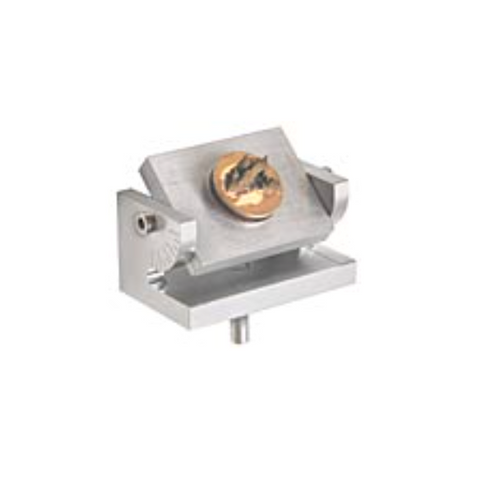

SEM variable tilt specimen pin mount holder, pin mount

The SEM variable tilt specimen pin mount holder can accommodate 3.2mm diameter pin stubs up to 18mm long or larger specimens up to 26 x 20mm. Made of aluminium with stainless steel screws, it can tilt 0 - 90° with markings for 30°, 45°, and 70°.

Specifications:

  • Tilt table size is 26 x 20mm
  • Overall size is 33mm W x 20mm D x 19mm H
  • Screws are M2 x 0.4mm x 6mm Hex SHCS and M2 x 0.4mm x 3mm Hex Socket type 1 Cup Pt-SS. Allen key included
  • Pin stub can be locked with set screw in tilt table
Updated: 27-12-2024
Code Title Pack Size Availability Price Updated: 27-12-2024
GTP15450 SEM variable tilt specimen pin mount holder, pin mount Each 3 weeks $548.00 AUD
