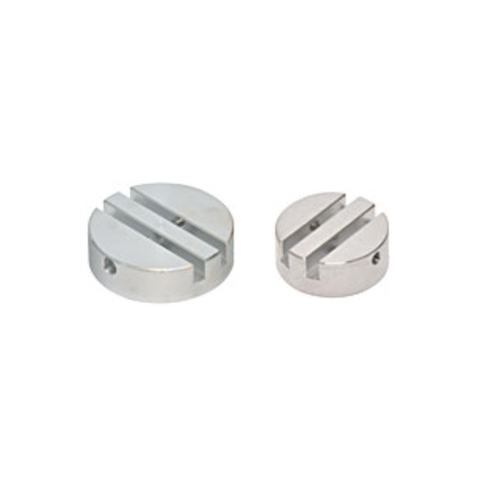

SEM vice specimen mount, large double slotted, M4 cylinder

These SEM double slotted large vice specimen mounts allow for set screw vice clamping of thin sections and cross sections without the need for conductive paint. Made from machined aluminium with 2 stainless steel xex key screws, hex key included. Screw used is M3 x 6mm, flat head set screw, stainless steel. Hitachi TM4000/TM3030/TM3000/TM1000 tabletop SEM's.

Sizes:

25mm diameter x 10mm with two 2.5mm wide by 5mm deep slots, screw used is M3 x 6mm, flat head
32mm diameter x 10mm with two 2.5mm wide by 5mm deep slots, Screw used is M3 x 8mm, flat head

Please choose carefully. Returns of this item are subject to approval.

Updated: 04-06-2026

Code	Size	Pack Size	Availability	Price	Updated: 04-06-2026
GTP16312	32mm dia. x 10mm	Each	0 in stock (?)	$116.00 AUD
GTP16372	25mm dia. x 10mm	Each	0 in stock (?)	$82.00 AUD

* Ordering Schedule

This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 3 weeks.

This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
